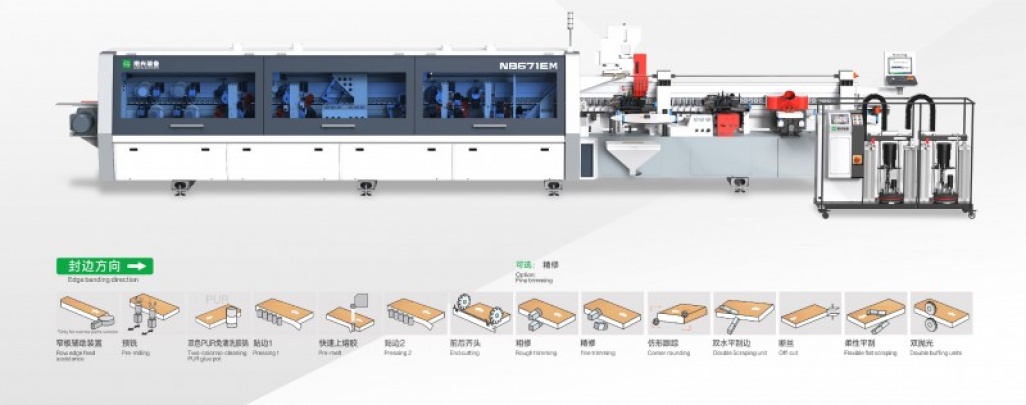

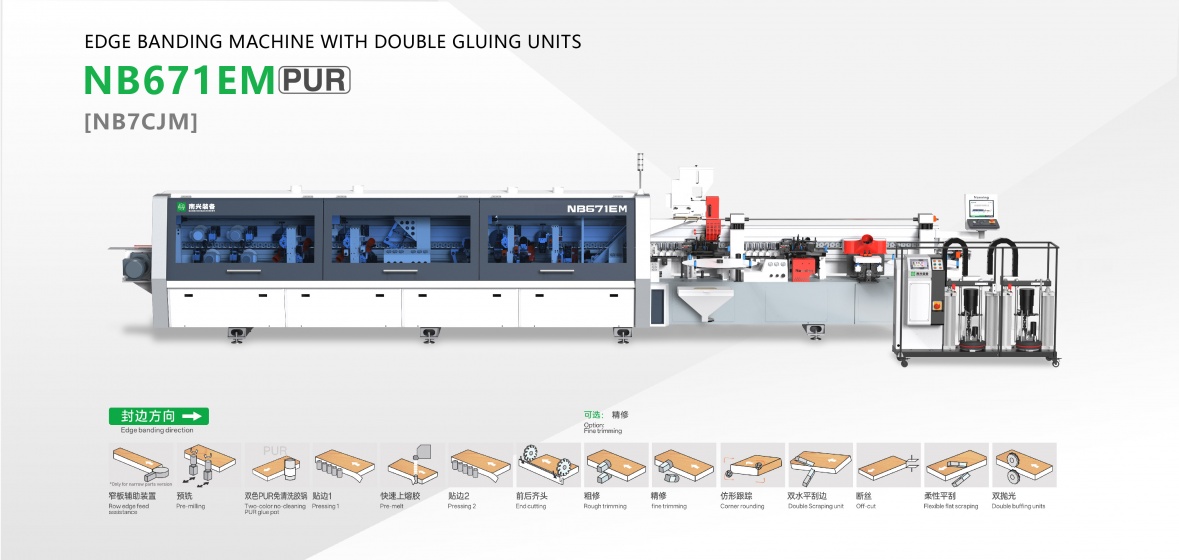

Edge Banding Machine with Double Gluing Units NB671EM(NB7CJM)
back.jpg)
Highlights
- Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming;
- Additional pre-milling at front;
- Two sets of gluing, fine trimming, scraping and buffing units make it easy and fast to switch between dark and light color glue which meet flexible edge banding requirements. Cutters of one set of fine trimming, scraping are able to move backwards automatically if changing to the other color glue, set-up time tends to zero. Low investment, big benefits.
- Most electric components are in world famous brand.
Model NB671EM
| Panel length |
≥120mm |
| Panel width |
≥80mm |
| Min panel size |
200mm×80mm |
| Panel thickness |
9-60mm |
| Edge tape thickness |
0.4-3mm |
| Feeding speed |
16/20/24m/min |
| Total power | 30kw |
| Overall dimension |
9,800×1,050×1,650mm |
| Net weight | 3,670KG |
