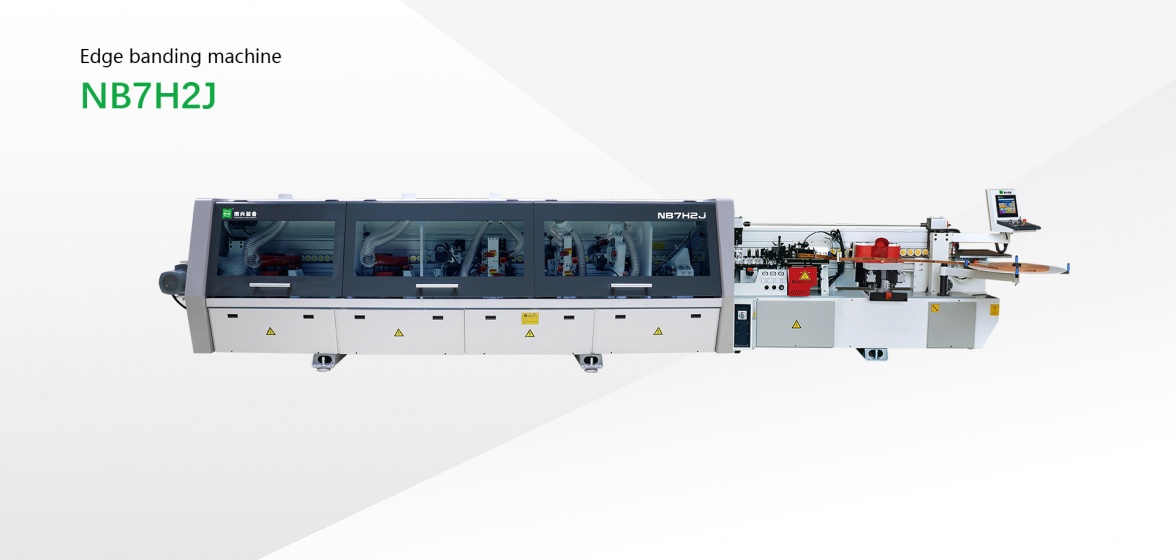

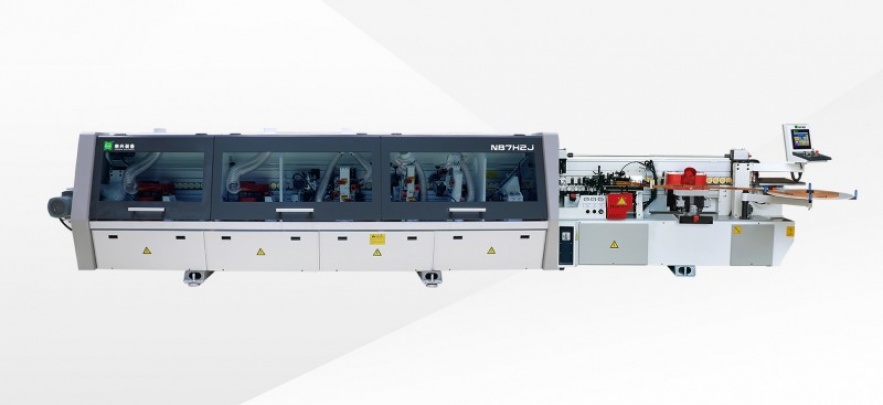

Edge Banding Machine NB7H2J
back.jpg)
Model NB7H2J
| Panel length |
≥120mm |
| Panel width |
≥80 mm |
| Min panel size |
120×80mm |
| Panel thickness |
9-60mm |
| Edge tape thickness |
0.4-3mm |
| Feeding speed |
16/20/24m/min |
| Feeding speed(corner trimming on) |
--- |
| Dust extraction | φ125mm×6 |
| Total power | 32.5kw |
| Overall dimension |
8260×1050×1650mm |
| Net weight | 2860kg |
