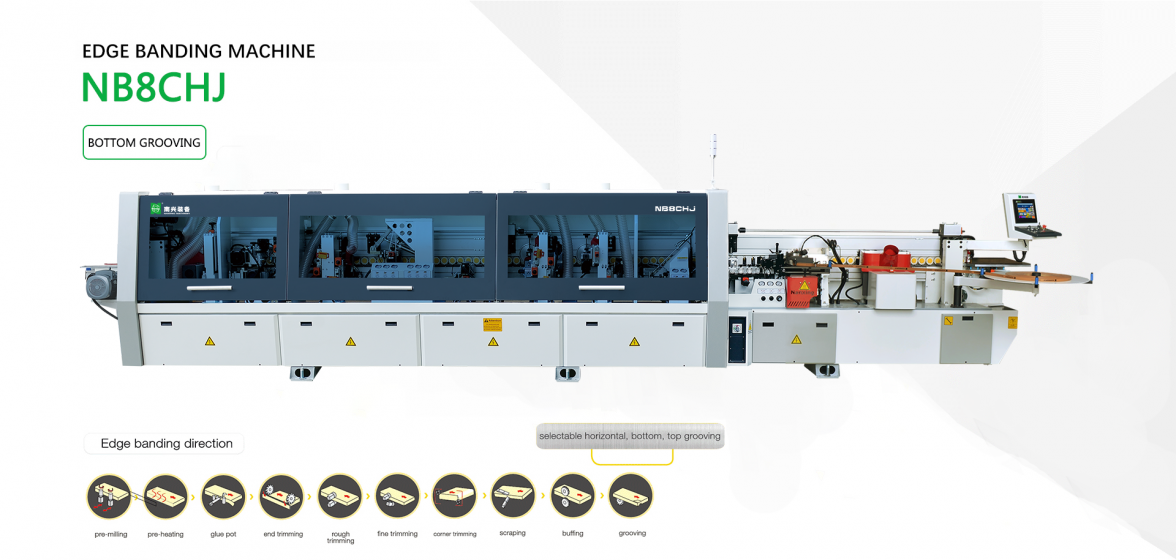

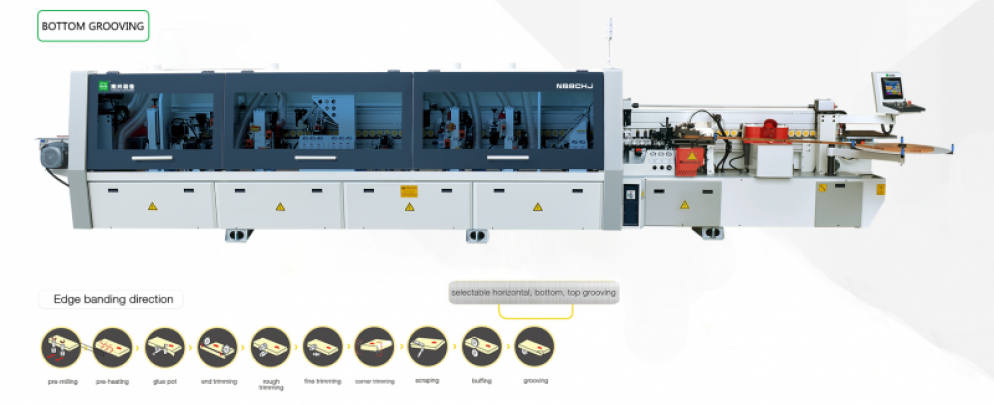

Edge Banding Machine NB8CHJ
back.png)
Highlights
- Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
- Merges numerous functions in one machine, edge banding and grooving can be done in one process.

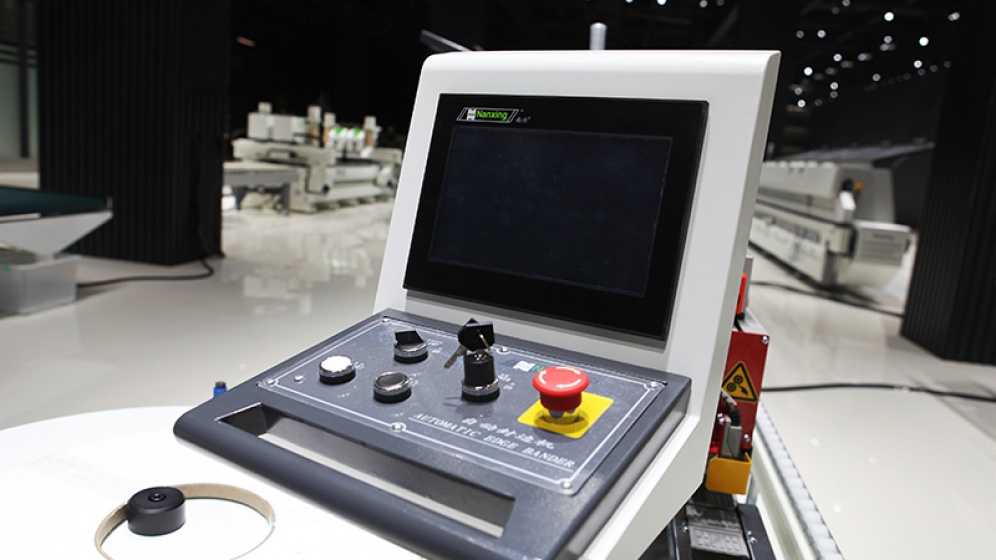

- Automatic standby, one-button wake-up device and energy saving;
- Most electric components are in world famous brand.
Model NB8CHJ
| Panel length |
≥120mm（corner trim on≥200mm） |
| Panel width |
≥80 mm |
| Min panel size |
120×80mm |
| Panel thickness |
9-60mm |
| Edge tape thickness |
0.4-3mm |
| Feeding speed |
16/20/24m/min |
| Feeding speed(corner trimming on) |
--- |
| Dust extraction | φ125mm×6 |
| Total power | 29.3kw |
| Overall dimension |
8260×1050×1650mm |
| Net weight | 2980kg |
