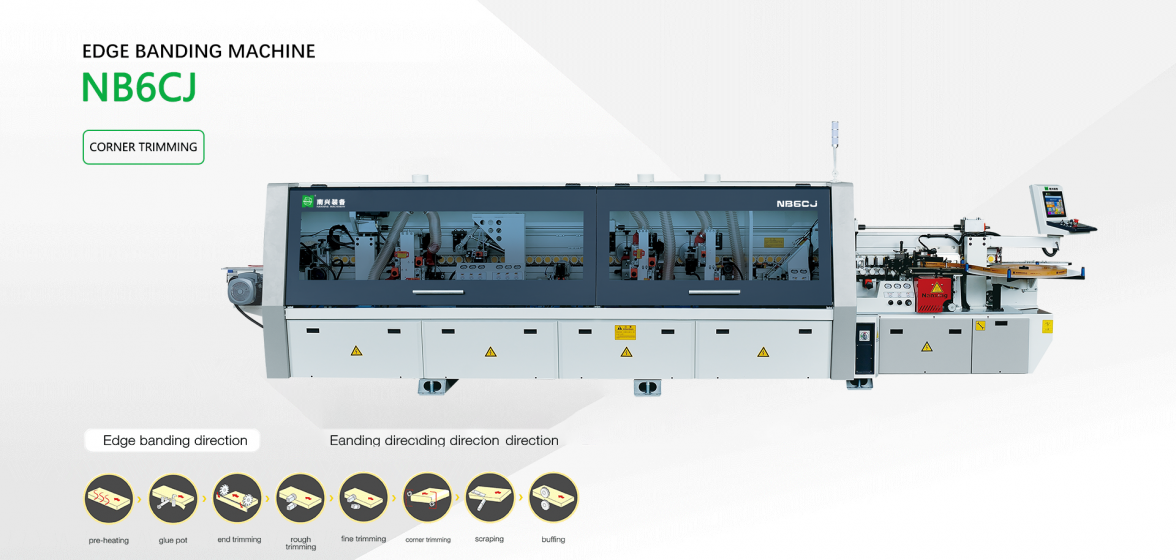

Edge Banding Machine NB6CJ

back

Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;

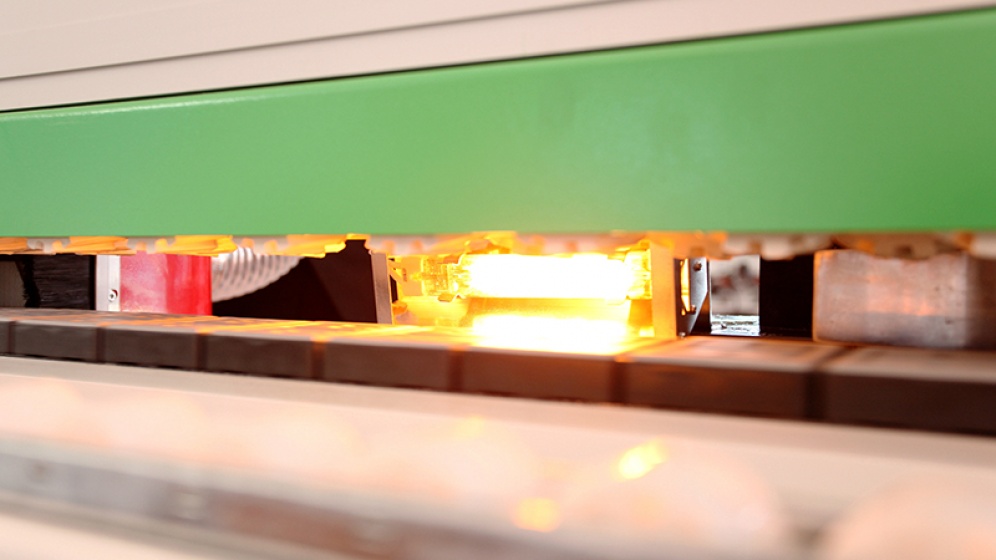

Pre-heating before gluing warms the work piece edge, the glue could well melt during gluing, especially suitable for wet or cold zones.

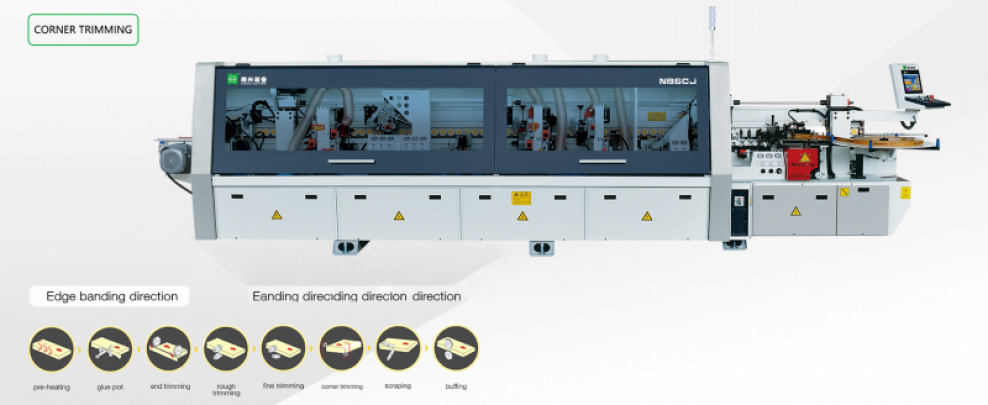

Corner trimming unit is designed to trim 4 corners to achieve R circular arc radius.

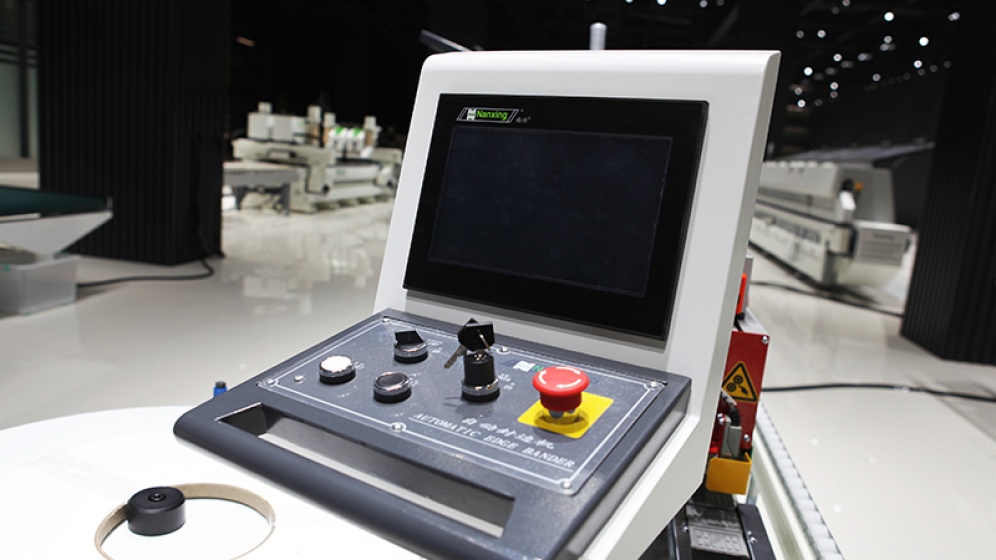

Automatic standby, one-button wake-up device and energy saving;
Most electric components are in world famous brand.

Model NB6CJ

Panel length	≥120mm（corner trim on≥200mm）
Panel width	≥80 mm
Min panel size	120×80mm
Panel thickness	9-60mm
Edge tape thickness	0.4-3mm
Feeding speed	16/20/24m/min
Feeding speed(corner trimming on)	---
Dust extraction	φ125mm×3
Total power	16.3kw
Overall dimension	6600×1050×1650mm
Net weight	2430kg
