Edge Banding Machine NB7CJ

back

Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;

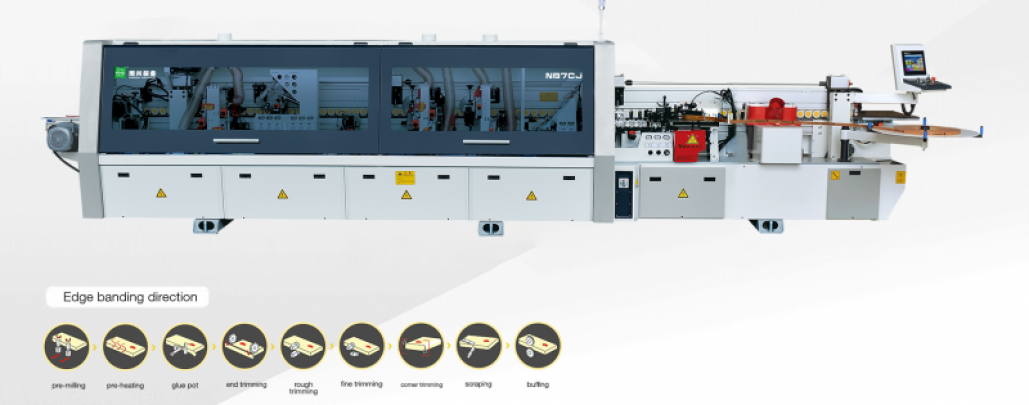

Merges numerous functions in one machine, including pre-milling, pre-heating, glue pot, snipping, end trimming, rough trimming, fine trimming, corner trimming, scraping and buffing, edge banding work can be done in one process.
Automatic standby, one-button wake-up device and energy saving;
Most electric components are in world famous brand.

Model NB7CJ

Panel length	≥120mm（corner trim on≥200mm）
Panel width	≥80 mm
Min panel size	120×80mm
Panel thickness	9-60mm
Edge tape thickness	0.4-3mm
Feeding speed	16/20/24m/min
Feeding speed(corner trimming on)	---
Dust extraction	φ125mm×4
Total power	24kw
Overall dimension	7700×1050×1650mm
Net weight	2800kg
