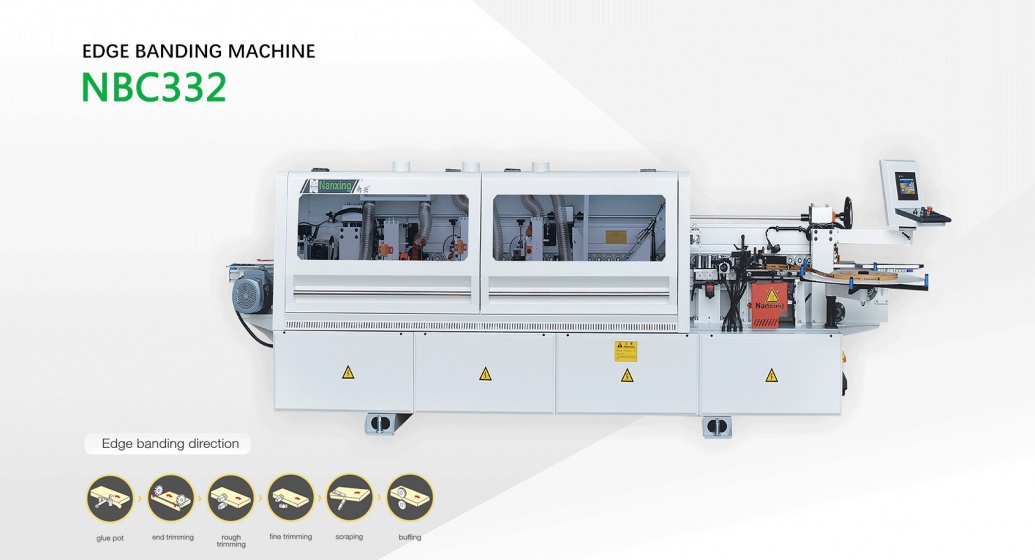

Edge Banding Machine NBC332
back.jpg)
Highlights
- Economical compact model, save space, simple operation, and save money!
- Machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
- The conveyor stops when the panel exceeds the specified thickness;
- Automatic standby, one-button wake-up device and energy saving;
- Most electric components are in world famous brand.
Model NBC332
| Panel length |
≥120mm |
| Panel width |
≥60 mm |
| Min panel size |
120×80mm |
| Panel thickness |
9-60mm |
| Edge tape thickness |
0.4-3mm |
| Feeding speed |
16/20/24m/min |
| Feeding speed(corner trimming on) |
--- |
| Dust extraction | φ125mm×3 |
| Total power | 12.2kw |
| Overall dimension |
5040×1050×1440mm |
| Net weight | 1620kg |
