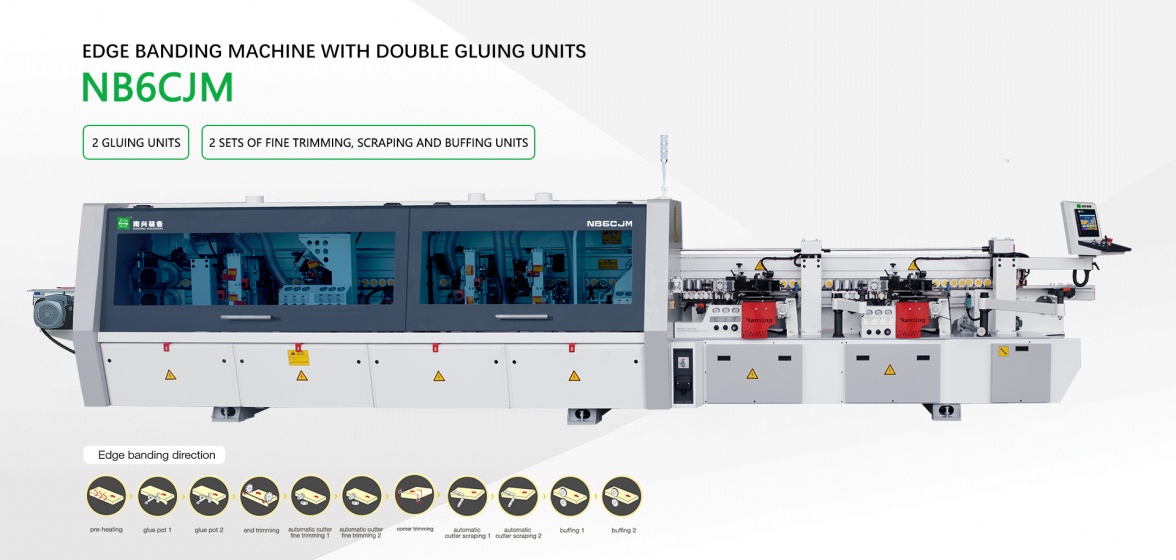

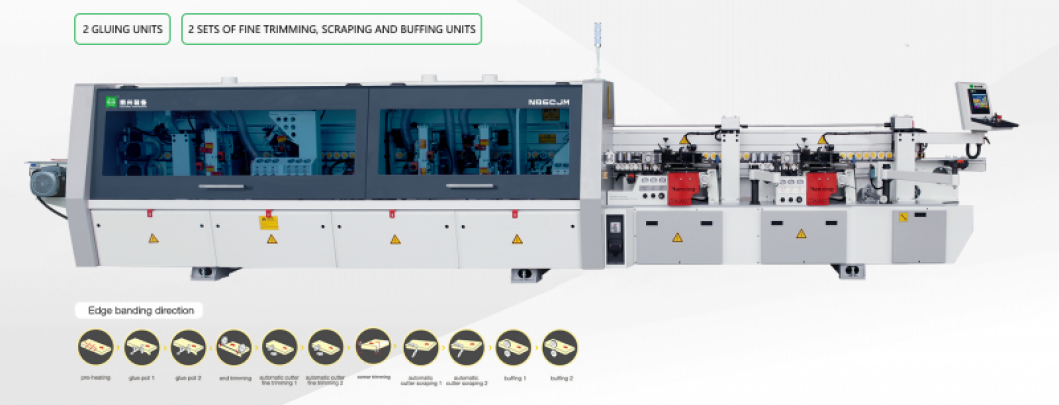

Edge Banding Machine with Double Gluing Units NB6CJM
back.png)
Highlights
- Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;

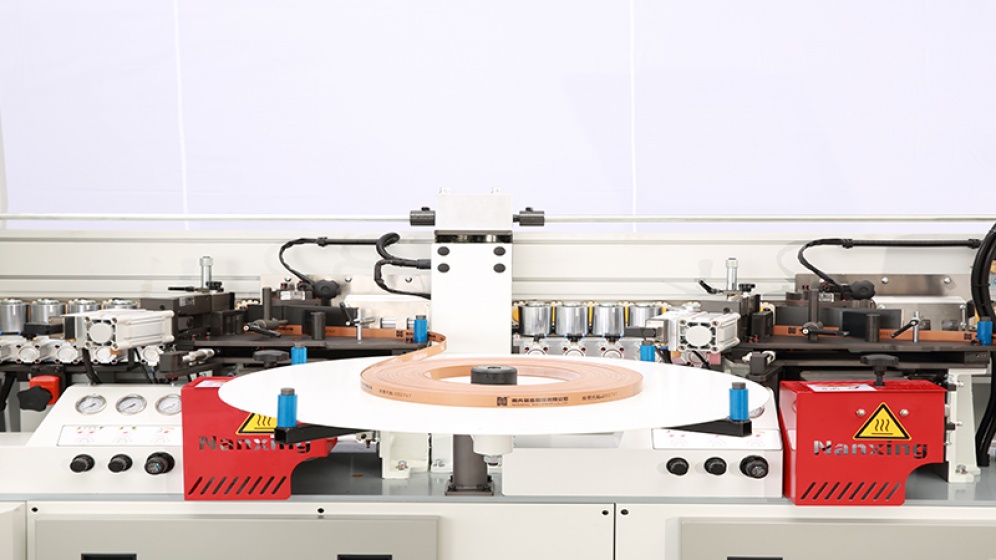

- Two sets of gluing, fine trimming, scraping and buffing units make it easy and fast to switch between dark and light color glue which meet flexible edge banding requirements. Cutters of one set of fine trimming, scraping are able to move backwards automatically if changing to the other color glue, set-up time tends to zero. Low investment, big benefits.
- Most electric components are in world famous brand.
Model NB6CJM
| Panel length |
≥120mm（corner trim on≥200mm） |
| Panel width |
≥80 mm |
| Min panel size |
120×60mm |
| Panel thickness |
9-60mm |
| Edge tape thickness |
0.4-3mm |
| Feeding speed |
16/20/24m/min |
| Feeding speed(corner trimming on) |
--- |
| Dust extraction | φ125mm×4 |
| Total power | 22.6kw |
| Overall dimension |
9400×1450×1650mm |
| Net weight | 3100kg |
