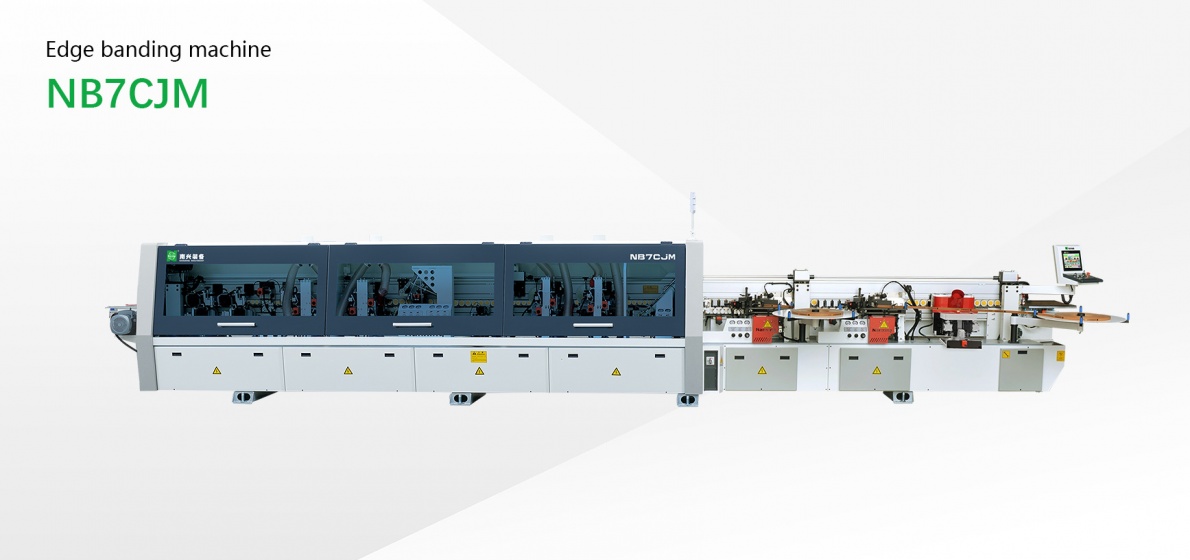

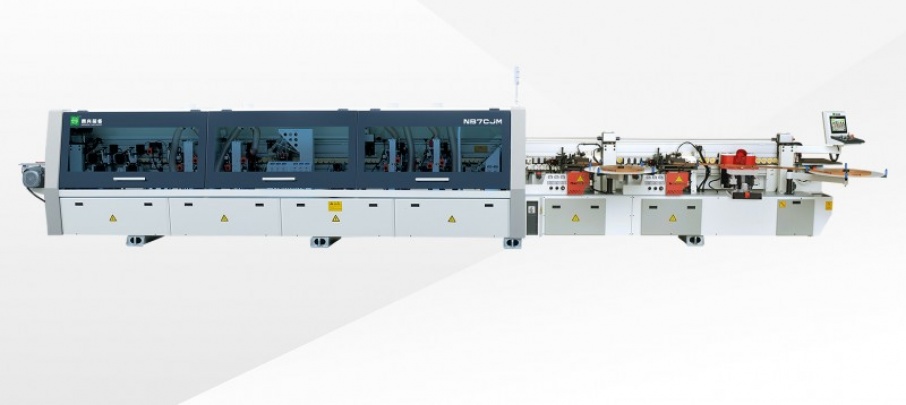

Edge Banding Machine with Double Gluing Units NB7CJM

back

Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
Additional pre-milling at front;
Two sets of gluing, fine trimming, scraping and buffing units make it easy and fast to switch between dark and light color glue which meet flexible edge banding requirements. Cutters of one set of fine trimming, scraping are able to move backwards automatically if changing to the other color glue, set-up time tends to zero. Low investment, big benefits.
Most electric components are in world famous brand.

Model NB7CJM

Panel length	≥120mm（corner trim on≥200mm）
Panel width	≥80 mm
Min panel size	120×80mm
Panel thickness	9-60mm
Edge tape thickness	0.4-3mm
Feeding speed	16/20/24m/min
Feeding speed(corner trimming on)	---
Dust extraction	φ125mm×4
Total power	30kw
Overall dimension	9800×1050×1650mm
Net weight	3670kg
