Edge Banding Machine NB6J

back

Highlights

Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
The conveyor stops when the panel exceeds the specified thickness;
Automatic standby, one-button wake-up device and energy saving;
Most electric components are in world famous brand.

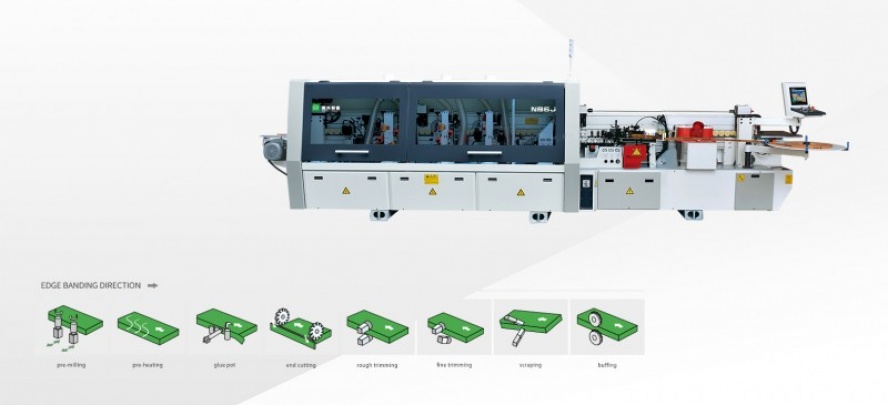

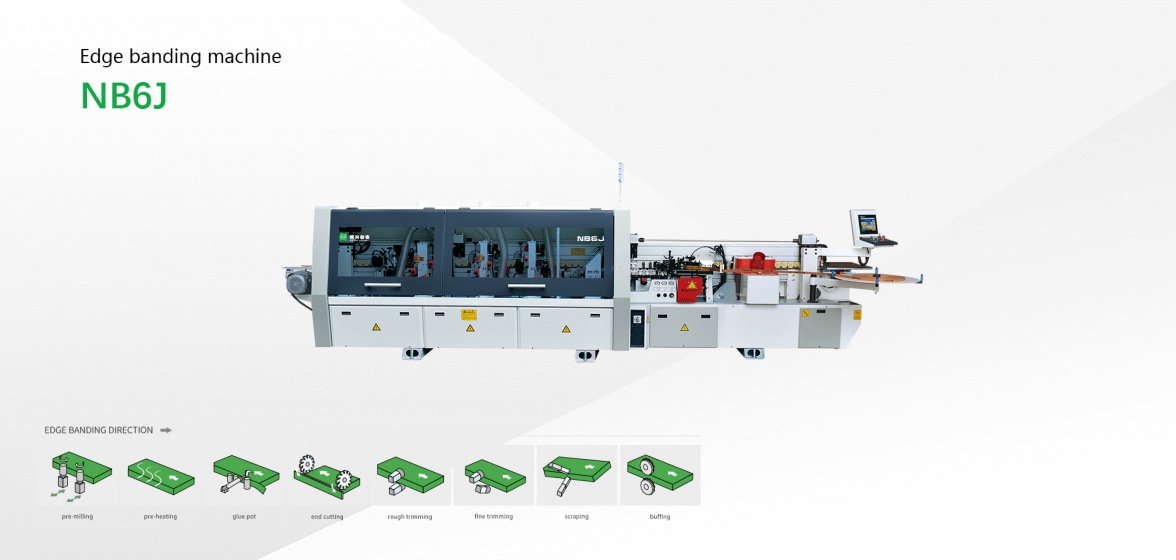

Model NB6J

Panel length	≥120mm
Panel width	≥40 mm
Min panel size	120×80mm
Panel thickness	9-60mm
Edge tape thickness	0.4-3mm
Feeding speed	16/20/24m/min
Feeding speed(corner trimming on)	---
Dust extraction	φ125mm×4
Total power	23kw
Overall dimension	6600×1050×1650mm
Net weight	2400kg
