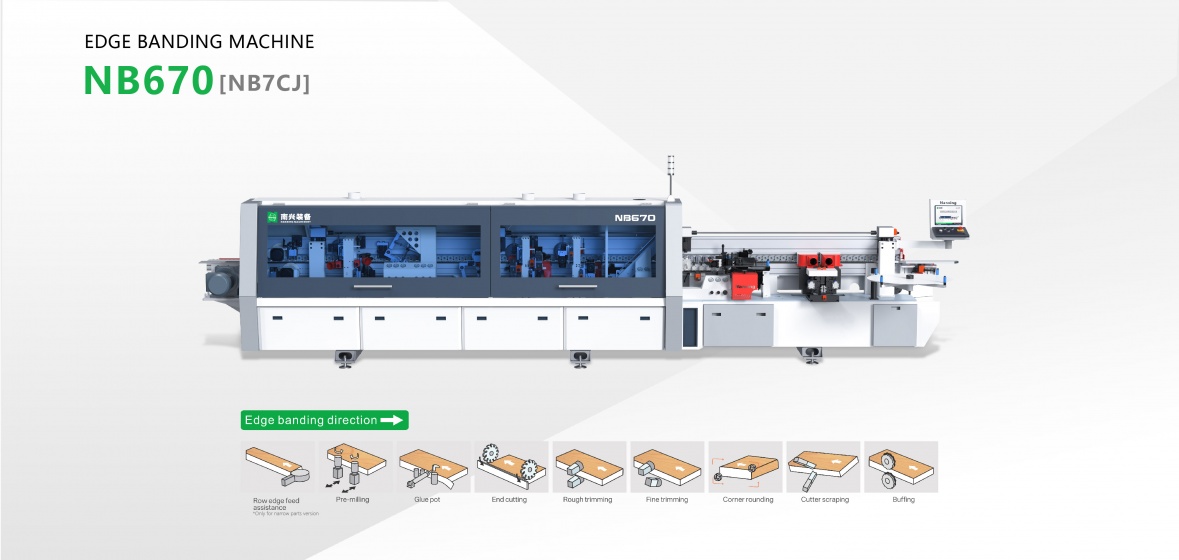

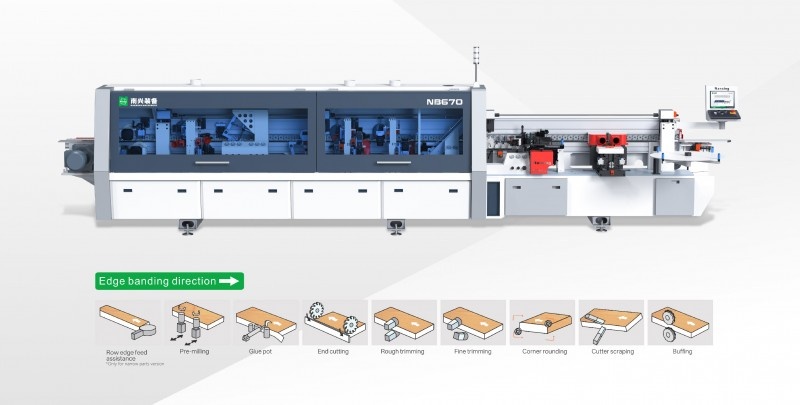

Edge Banding Machine NB670(NB7CJ)

back

     Highlights

  • Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
  • Merges numerous functions in one machine, including pre-milling, pre-heating, glue pot, snipping, end trimming, rough trimming, fine trimming, corner trimming, scraping and buffing, edge banding work can be done in one process.
  • Automatic standby, one-button wake-up device and energy saving;
  • Most electric components are in world famous brand;
  • Customer Reference: 30+ countries; 2000+ machines.

Model NB670

Panel length

≥120mm

Panel width

≥80mm

Min panel size

200mm×80mm

Panel thickness

10-60mm

Edge tape thickness

0.4-3mm

Feeding speed

16/20/24m/min

Total power 24kw
Overall dimension

9,800×1,450×1,650mm

Net weight 3,670KG
