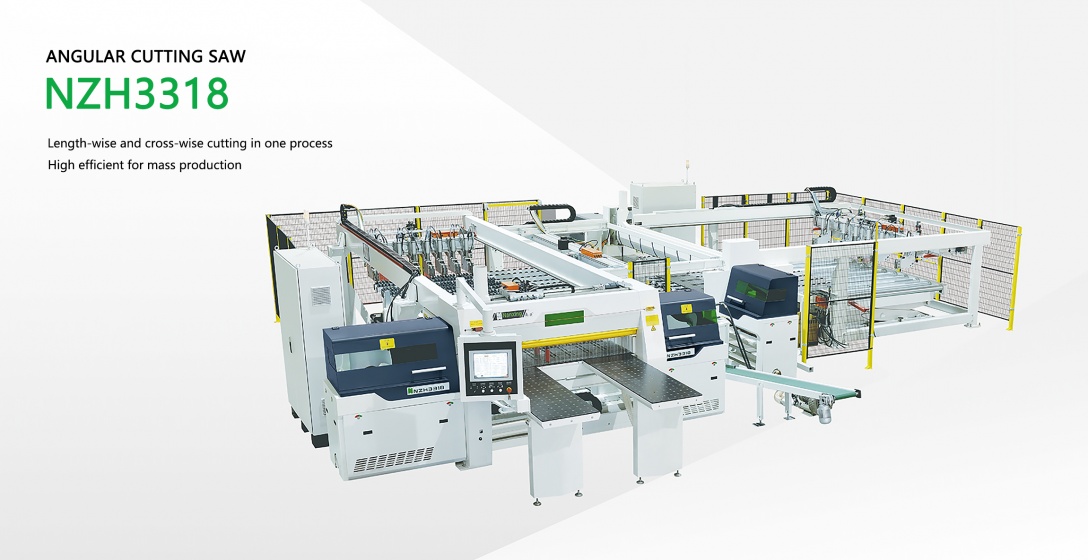

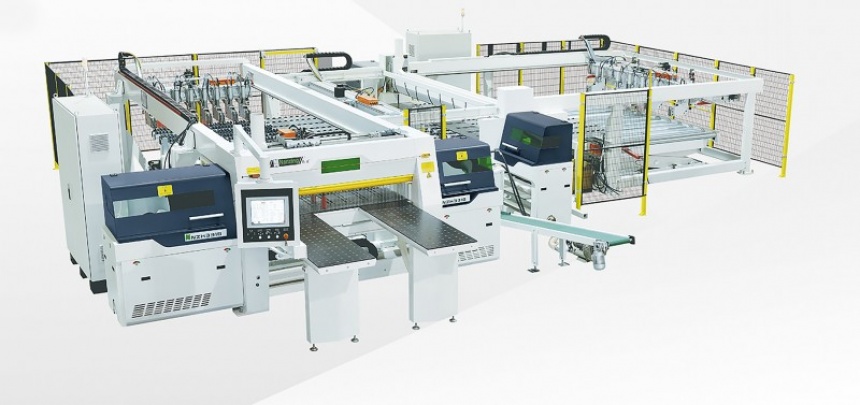

Angular Saw NZH3318

back

Highlights

Automatic lengthwise and crosswise under desired sequential cutting within the angular saw in one process, suitable for mass cutting;
Maximum cutting thickness up to 120mm;
Selected 18kw Italian main saw motor;
Heavy duty rear feeding hydraulic lifting table;
IPC control center plus Nanxing operation and optimizing software to make the angular saw, possible for infotech production.

Model NZH3318

Max lengthwise cutting length	3300mm
Cutting crosswise cutting length	1800mm
Cutting thickness	120mm
Main saw motor power	18kw×2
Main saw motor rotating speed	3910rpm
Scoring saw rotating speed	4150rpm
Auto feeding speed	85m/min
Saw carriage forward speed	85 m/min
Saw carriage backward speed	100 m/min
Dust extraction	φ150mm×6
Air blower	3*2.2kw
Overall size	9200x11600x2020mm
Net weight	19000kg
Clamp qty	Lengthwise saw 6pcs crosswise saw 8pcs
Total power	73.5kw
