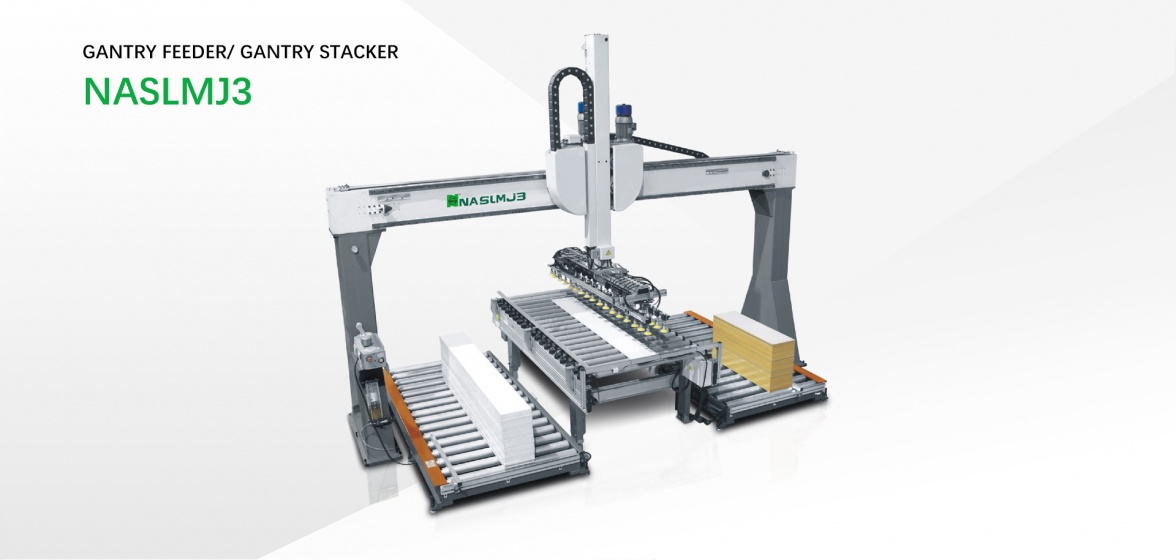

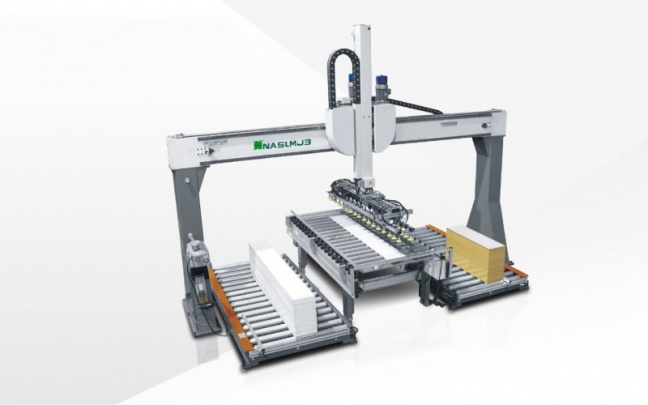

Gantry Feeder / Gantry Stacker NASLMJ3

back

    Highlights

  • Auto feeding or stacking is selectable, save labor and in high efficiency;
  • Strong gantry frame structure is able to support max 60kg big panel;
  • Two stacking areas for two kinds of different work pieces;
  • Full covered drag chain prevents electric wires from dust and chips for longer service life;
  • Lubrication system to grease transmission parts easily;

Model

NASLMJ3

Panel length

250-2440mm

Panel width

250-1300mm

Panel thickness

9-60mm

Max panel weight

60kg

Working frequency

≤7times/min

Total power

9.5kw

Overall dimension

5800×3000×3500mm

Net weight

4000kg
