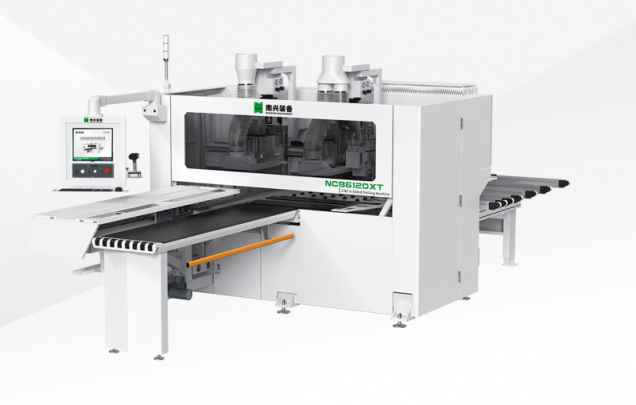

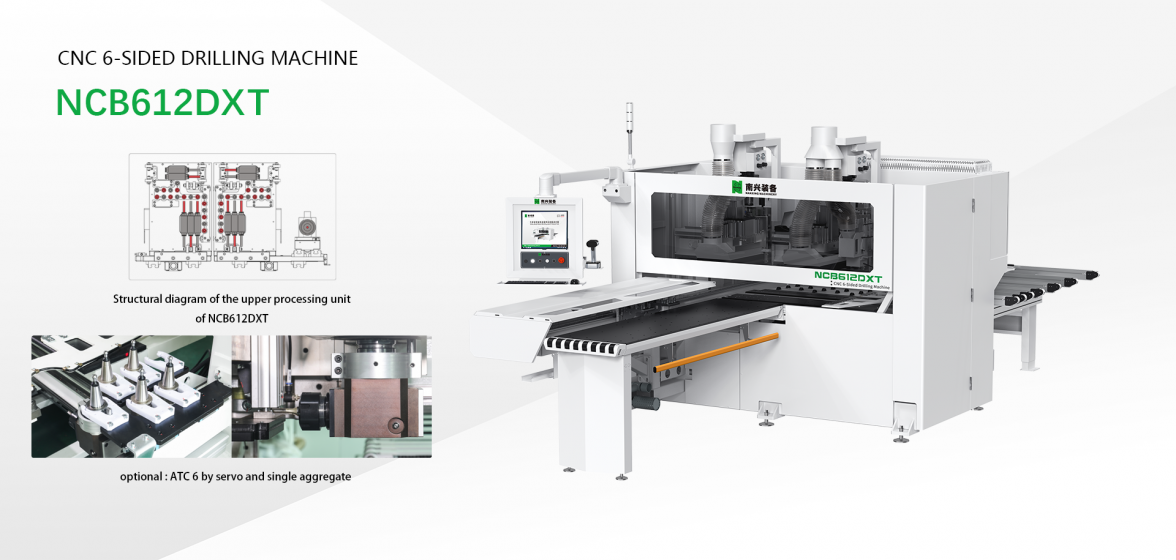

CNC 6-sided Drilling Center Machine NCB612DXT

back

4-slot line tool changer in ISO30 connector cooperate with tool setting gauge for fast tool changing.
Max rotating speed of top 5.5kw spindle up to 18000 rpm.
Optimized drill layout to finish the drilling faster! Min. distance for ver. symmetrical drilling simultaneously is 160mm.
SYNTECH control system and operation system, more reliable electricity components, Industry level computer. High performance and stability during long service lift;
Multiple formats accepts MPR,DXF,BAN,BPP,PDX,XML,XXL
SYNTECH control system and operation system, more reliable electricity components, Industry level computer. High performance and stability during long service lift;
Nanxing high quality self-processed parts by laser cutting, robots welding, sandblasing, advanced 5-axis CNC processing.

Model	NCB612DXT
Panel size（drilling+grooving）	Thickness：10-50mm Width：30（groove 40）-1200mm Length： 200- 3000mm
Panel size（routing）	Thickness 12-50mm Width 65-1200mm Length 250- 2400mm
Control system	SYNTECH
Max speed（X/U/Y/Z）	135/135/75/30m/min
Spindle power	top：5.5kw，bottom：3.5kw
Max rotation speed	18000rpm
Top vert.drill	18×2
Top horiz. drill	X direction：4×2 Y direction：2×2
Lower vert.drill	9
Rotation speed	5000rpm
Dust collector	Top φ200mm*2, Bottom φ125mm
Total power	22.3kw
Overall dimension	6150×2906×2325mm
Net weight	3850kg
