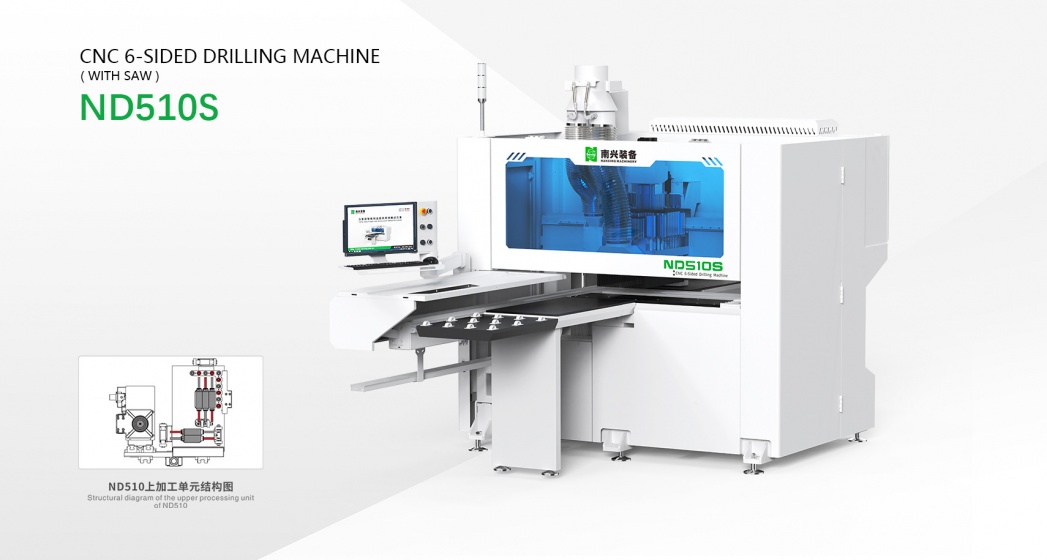

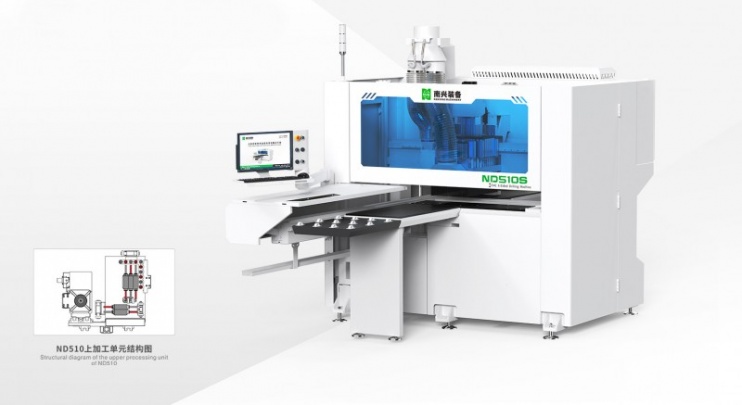

CNC 6-sided Drilling Machine ND510S with Saw

back

Highlights

Multi-functional CNC drilling machine is able to drill from 6 sides.
Top grooving.
Simple routing meets different process requests and gives batch-size-one production max flexibility.
Software is open port, support most formats in market.
Machine is configured with one top and one bottom drilling blocks,one 3.5kw top main spindle.
Compact design, save space.

Model ND510S

Panel size	Thickness：10-60mm Width：30-1200mm Length： 200- 3000mm
Max speed（X/U/Y/Z）	135/135/75/30/30(Vaxis)m/min
Spindle power	Top：3.5kw，Bottom：3.5kw
Air supply	0.6-0.7MPa
Vert.drill	10 / 9
Horiz. drill	X direction：6 Y direction：4
Total power	13.8kw
Machine size	3962×2222×2271mm
