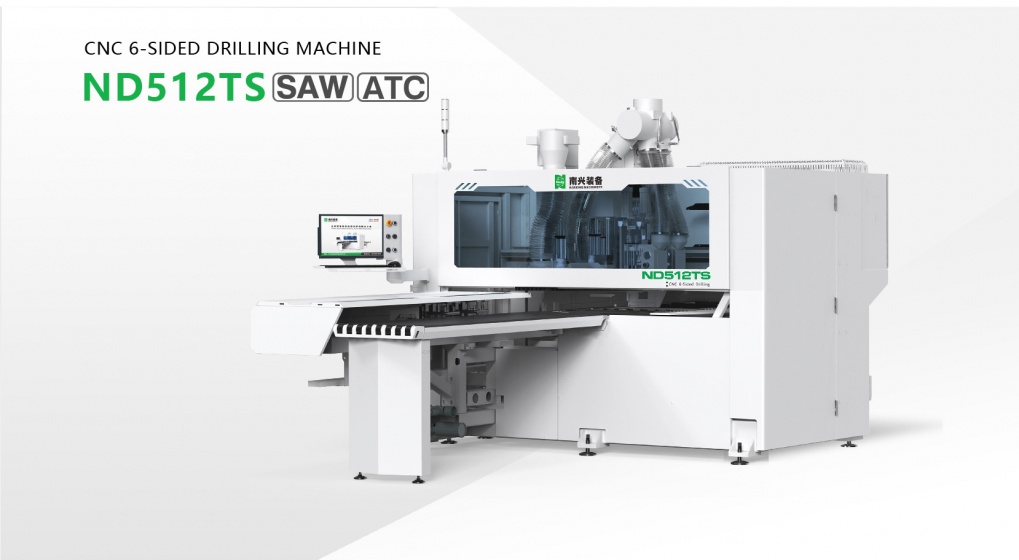

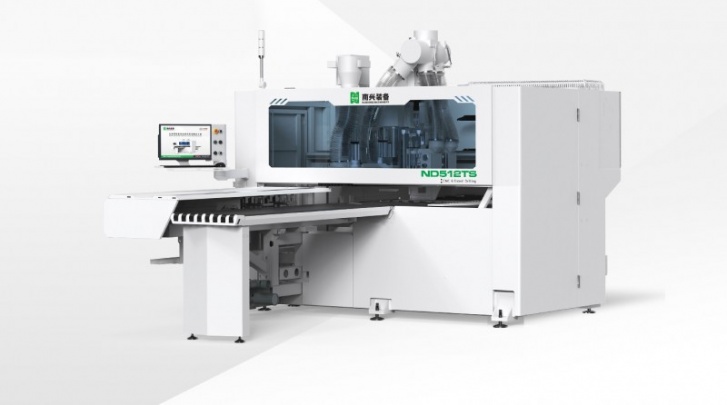

CNC 6-sided Drilling Machine ND512TS

back

Highlights

Multi-functional CNC drilling machine is able to drill from 6 sides.
Simple routing meets different process requests and gives batch-size-one production max flexibility.
Software is open port, support most formats in market.
Machine is configured with one top and one bottom drilling blocks,one 3.5kw top main spindle.

Model ND512TS

Panel size	Thickness：10-60mm Width：30-1200mm Length： 200- 2800mm
Max speed（X/U/Y/Z）	135/135/75/30/30(Vaxis)m/min
Spindle power	top：5.5kw，bottom：3.5kw
Max speed（X/U/Y/Z）	135/135/75/30m/min
Vert.drill	10
Horiz. drill	X direction：2×2 Y direction：2×2
Total power	21.07kw
Control system	SYNTECH
Machine size	3962×3010×2320mm
