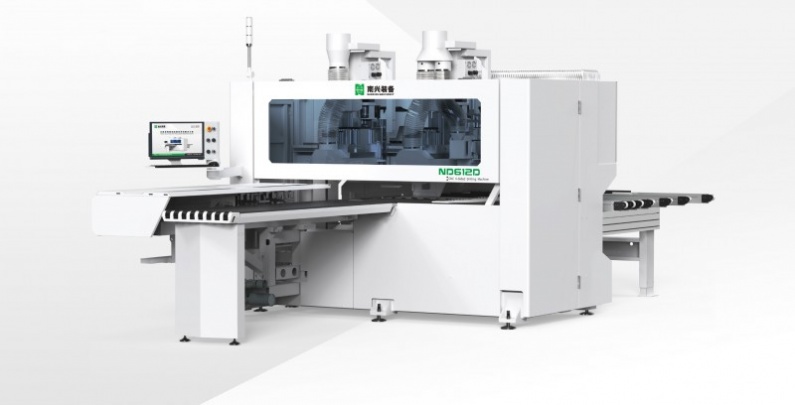

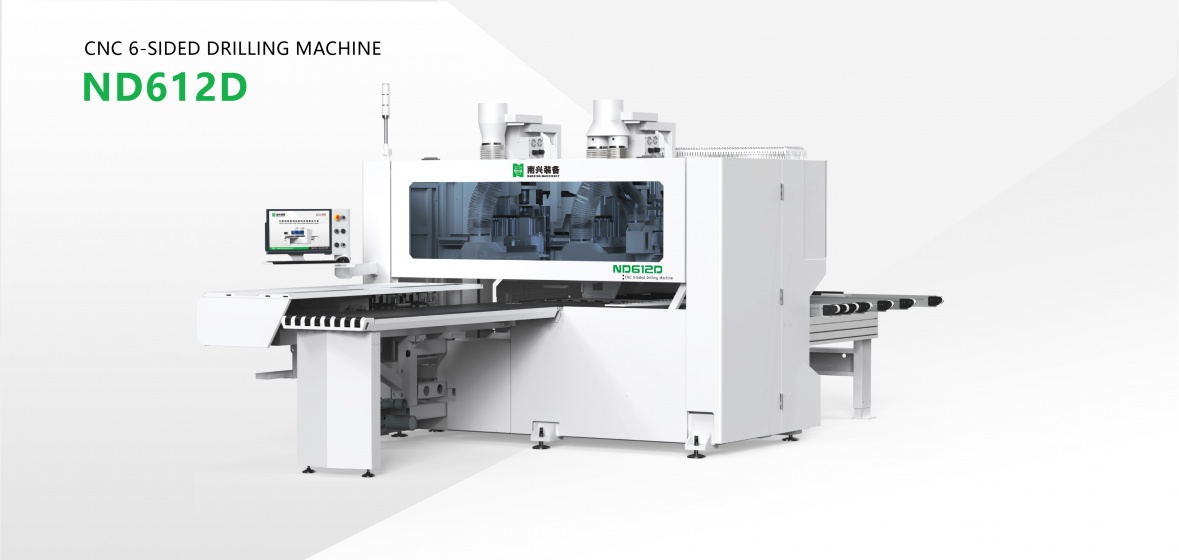

CNC 6-sided Drilling Machine ND612D

back

    Highlights

  • Nanxing has invested hundreds of millions for taking in 500 world best CNC and robot machines for metal works, making its production ranked No.1 in the woodworking machinery industry. SOP professional assemble lines.
  • Powerful SYNTECH CNC CONTROL SYSTEM equipped with specialist software to run for high process efficiency and easy operation, the fastest in the field.
  • 2topdrilling blocks with drills Ver. 19×2 plus Horz. X direction 3×4 &Y 2×4,1 bottom drilling block with ver. 9. . Top and bottom have 5.5kw ATC spindle router of 6-slot. And independent saw.
  • Adapt7kindsof file format and common furniture design software.
  • CustomerReference: 30+ countries; 2000+ machines.

Model ND612D

Panel size

Thickness:10-60mm

 Width:30-1220mm

Length: 200- 2800mm

Control system SYNTECH
Max speed(X/U/Y/Z)

135/135/75/35m/min

Spindle power

Top:3.5kw,Bottom:3.5kw

Top vert.drill

19×2

Top horiz. drill X direction:3×4  Y direction:2×2

Machine size

6150×2810×2320mm
