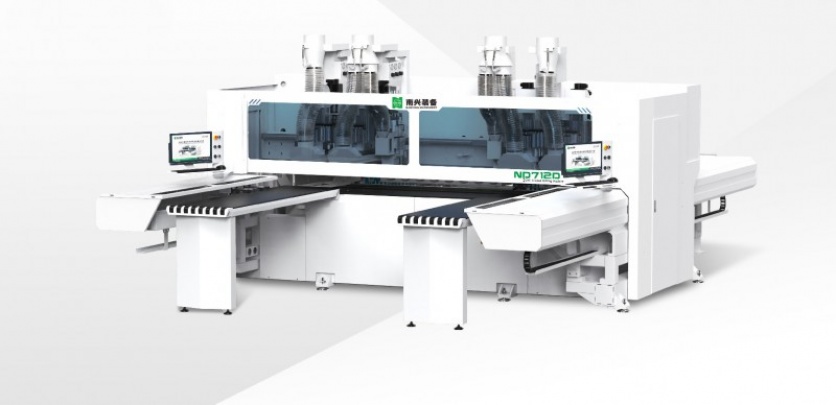

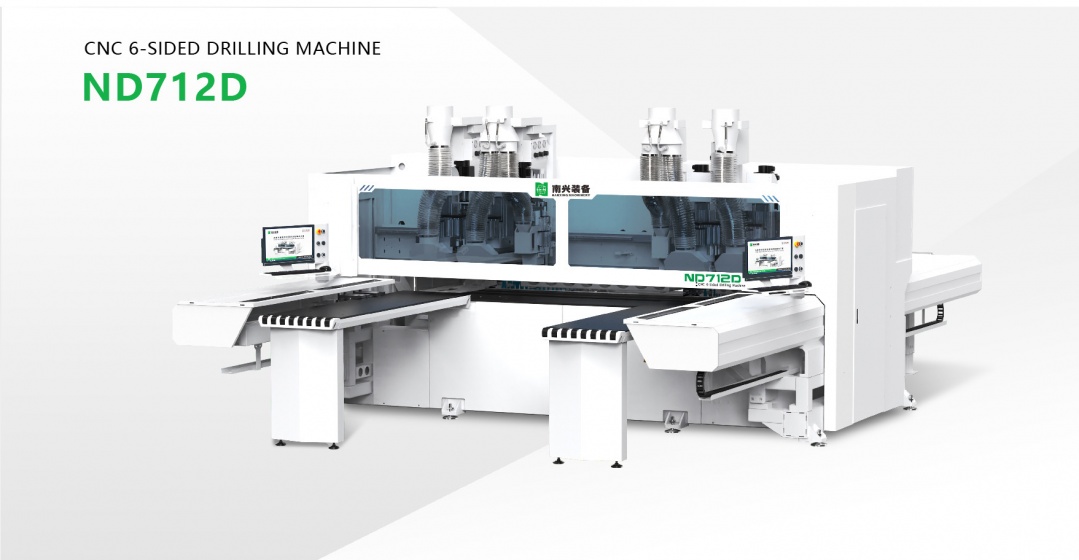

CNC 6-sided Drilling Machine ND712D

back

Highlights

ND712DL is designed to have 2 independent work stations by integrating 2 machines on one machine, thus double the efficiency with less space requirement compare. Integrated machine body structure of high rigidity offers the whole machine longer service life and stably fast processing.

Model ND712D

Panel size	Thickness：10-60mm Width：30-1220mm Length： 200- 2800mm
Panel size（Right）	Width: 30-650mm
Control system	SYNTECH
Max speed（X/U/Y/Z）	135/135/75/30m/min
Total power	43.9KW
Rotation speed	5000rpm
Top vert.drill	19×4
Top horiz. drill qty	X: 3×8 + Y: 2×8
Bottom vert.drill	9×2
Spindle power	3.5kw×2 / 3.5kw×2
Machine size	6600×4620×2620mm
