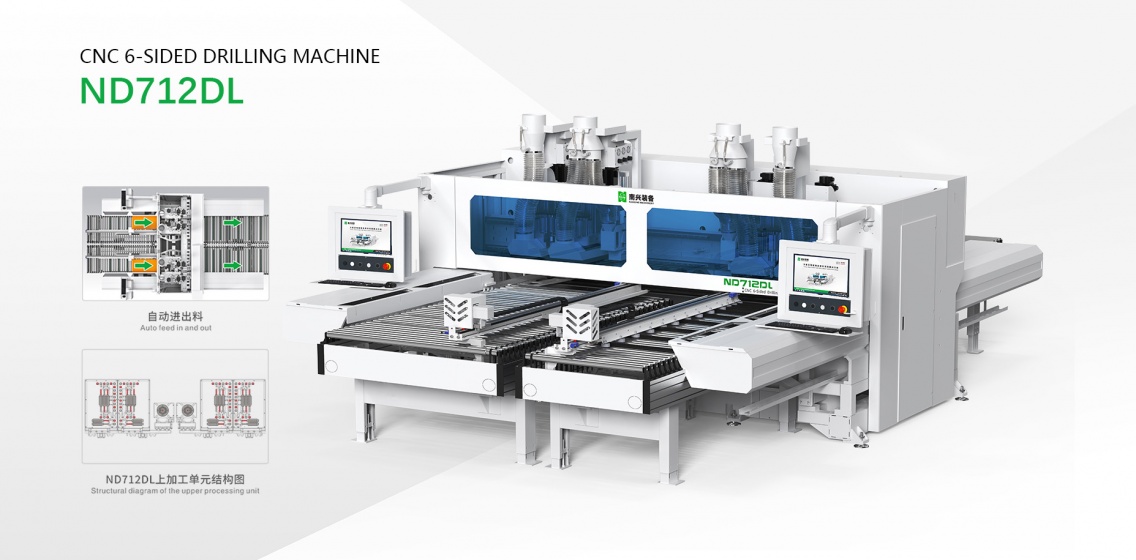

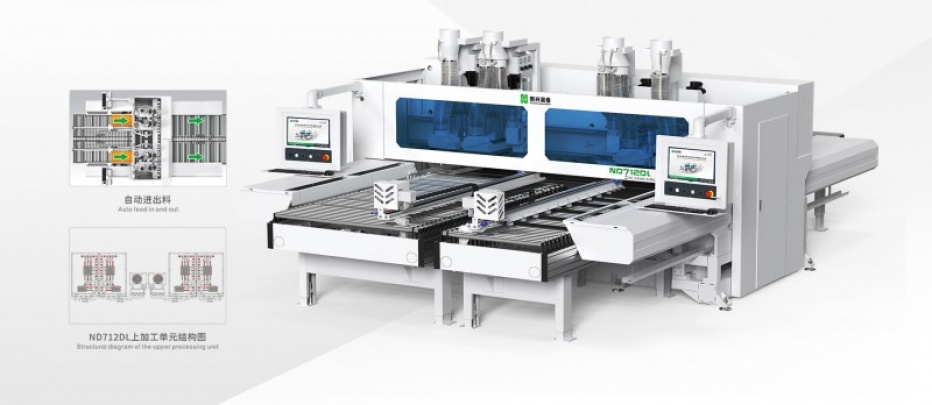

CNC 6-sided Drilling Machine ND712DL

back

Highlights

ND712DL is designed to have 2 independent work stations by integrating 2 machines on one machine, thus double the efficiency with less space requirement compare. Integrated machine body structure of high rigidity offers the whole machine longer service life and stably fast processing.

Model ND712DL

anel size	Thickness：10-60mm Width：30-650mm Length： 200- 3000mm
Panel size（routing）	Thickness 12-50mm Width 65-1200mm Length 250- 2400mm
Control system	SYNTECH
Max speed（X/U/Y/Z）	135/75/30m/min
Total power	48.36KW
Rotation speed	5000rpm
Top vert.drill	19×4
Top horiz. drill qty	X: 3×8 + Y: 2×4
Bottom vert.drill	9×2
Spindle power	4*3.5kw max.18000rpm
Machine size	740044702380
