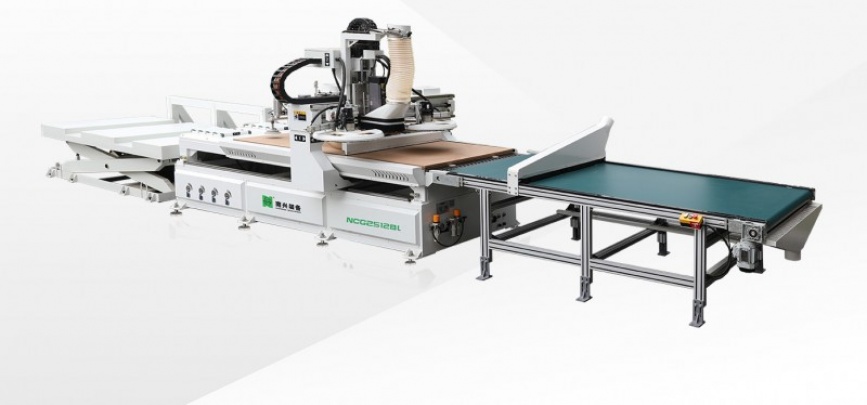

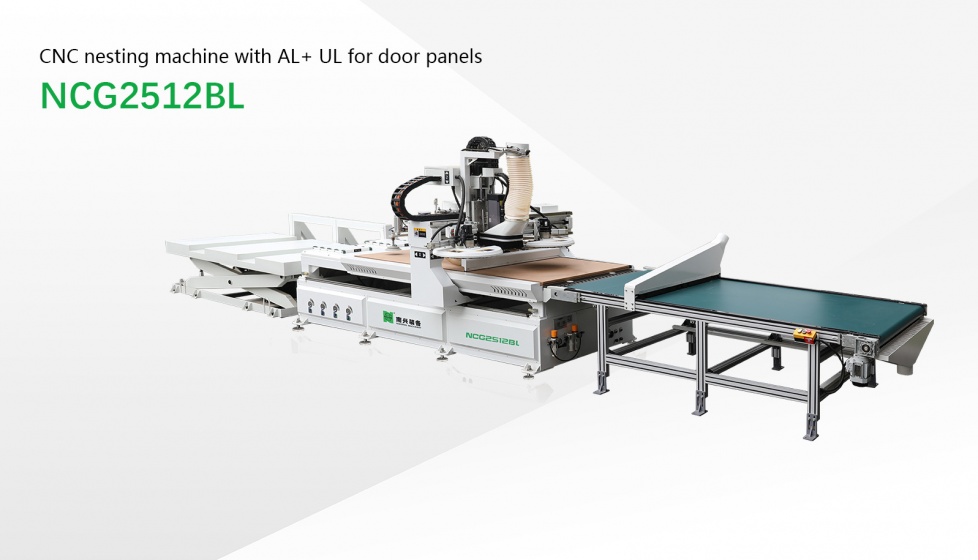

CNC Nesting Machine with AL+UL NCG2512BL

back

Model	NCG2512BL	NCG2512B
Table size	2440×1220mm	2400×1220mm
Max speed	30/30/20 m/min	30/30/20 m/min
Main spindle power	12kw	12kw
Max rotating speed	24000rpm	24000rpm
ATC	12	12
Vertical drills	10	10
Rotating speed	4000rpm	4000rpm
Vacuum pump	7.5kw	7.5kw
Suction flow rate	250m3/h	250m3/h x 2
Dust extraction	φ200mm×1 φ125mm×3	φ200mm×1 φ125mm×3
Total power	30kw	25kw
Overall dimension95	9500×2300×2700mm	3530×1820×2700mm
Net weight	3500kg	2200kg
