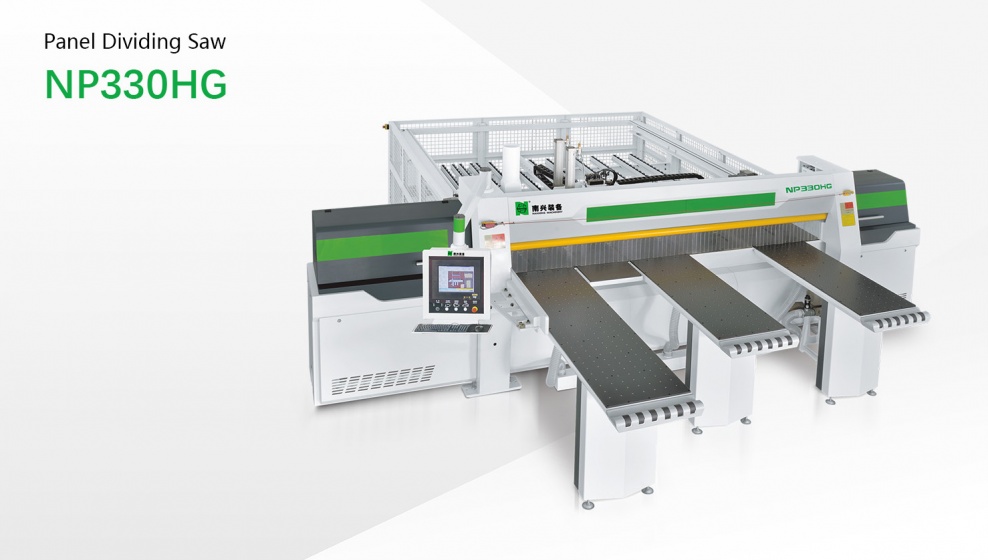

Panel Dividing Saw NP330HG

back

Model	NP330FG	NP280F(touch screen)	NP280FG	NP380FG
Cutting length	3280mm	2830mm	2830mm	3780mm
Cutting thickness	90mm	90mm	90mm	90mm
Main saw rotating speed	4200rpm	4200rpm	4200rpm	4200rpm
Scoring saw rotating speed	6500rpm	6500rpm	6500rpm	6500rpm
Saw carriage forward speed	120 m/min	80 m/min	80 m/min	80 m/min
Saw carriage backward speed	120 m/min	100 m/min	120 m/min	120 m/min
Main saw motor	15kw	15kw	15kw	15kw
Auto feeding speed	85 m/min	85 m/min	85 m/min	85 m/min
Dust extraction	φ150mm×3 φ125mm×1	φ150mm×3 φ125mm×1	φ150mm×3 φ125mm×1	φ150mm×3 φ125mm×1
Total power	21.5kw	21.5kw	21.5kw	21.5kw
Overall size	7000×5850×2000mm	7000×5400×2000mm	7000×5400×2000mm	7000×6350×2000mm
Net weight	5350kg	5000kg	5000kg	5900kg
