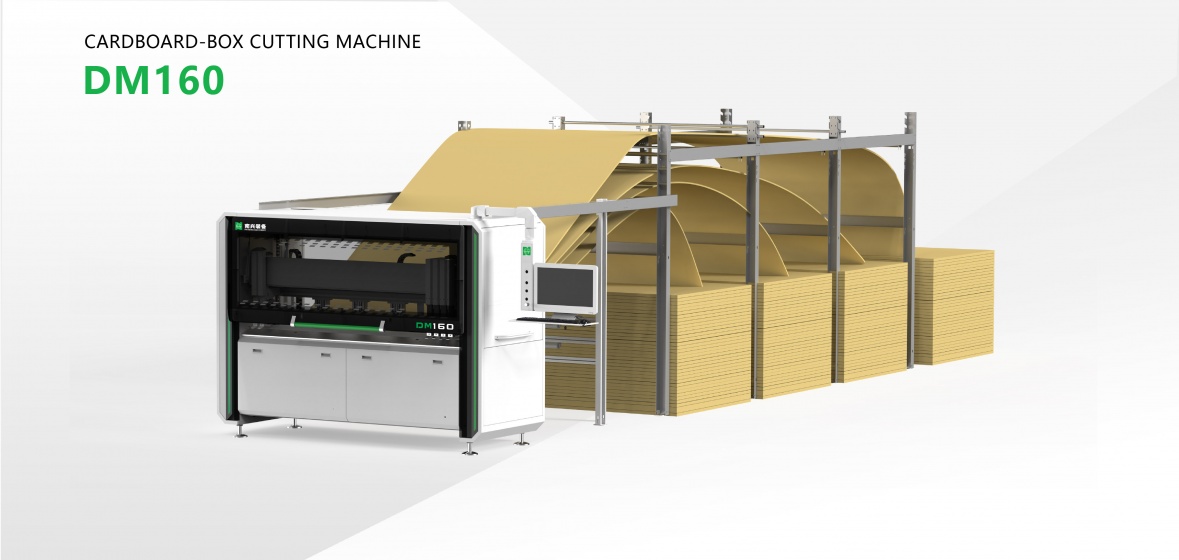

Cardboard Cutting Machine NKP16D(DM160)

back

    Highlights

  • Meets the demands of high-intensity 24-hour all-weather conditions with high load, high efficiency, and high stability in production.
  • Cutting tools are highly wear-resistant (cutting tools - special Japanese imported knife for corrugated cardboard).
  • Cutting rollers are highly wear-resistant (cutting rollers - special Japanese imported wear-resistant and cutting-improving rollers, ensuring long-term wear resistance without damage or cracking).
  • Equipped with 4 paper feeders, in addition to intelligent optimization of paper feeding, the system has developed AI functions to maximize the use of large paper rolls, and the system can intelligently utilize the remaining paper rolls.
  • The entire machine is equipped with 3 sets of controls, using unique control algorithms to achieve customized production at 3-5 pieces per minute, and mass production at 5-8 pieces per minute.

Model DM160

Cutting Speed

3-5 packs/min

Number of Material Bins 4 bins
Material Bin Width

1500mm

Paper Box Length

≥110mm

Paper Box Height

18-1600mm

Corrugated Paper Thickness 2.5-6.5mm
Corrugated Paper Width

110-1600mm

Maximum Paper Stacking Height

1300mm

(including 120mm pallet)

Machine size 9000×2330×2350mm
