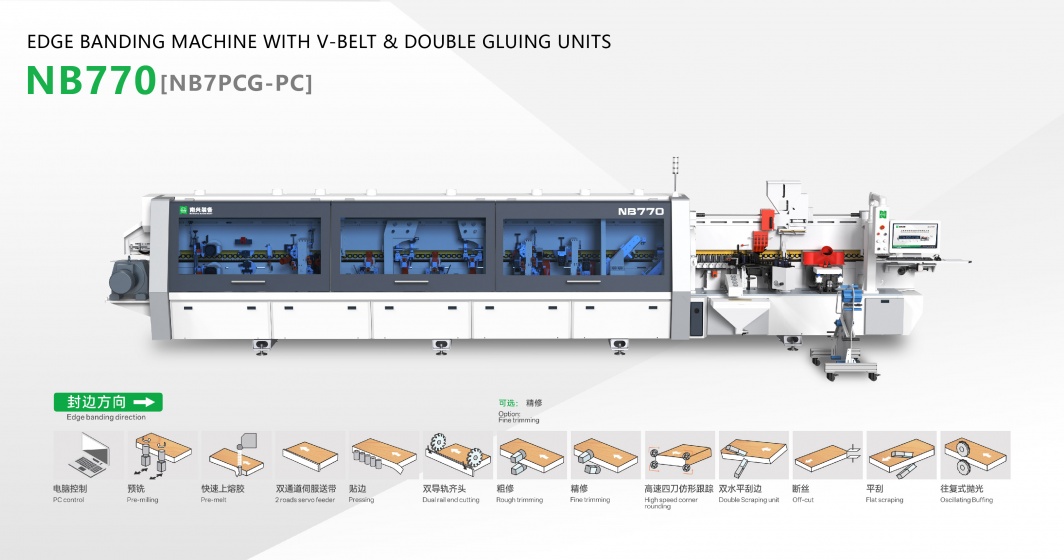

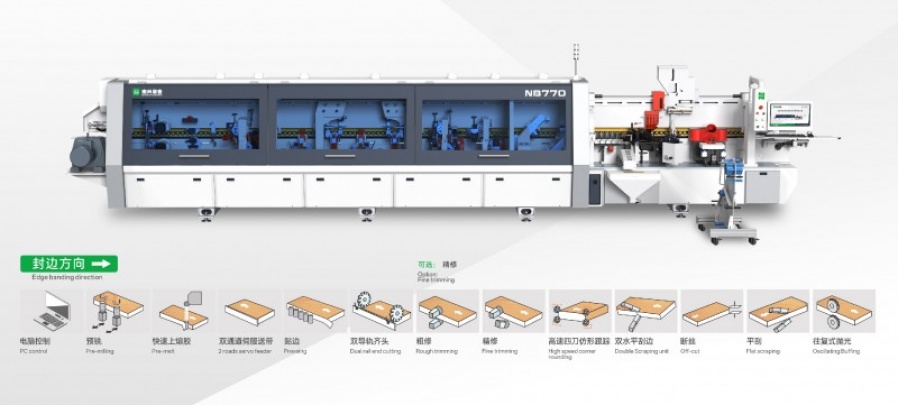

Edge banding machine with V-belt NB770(NB7PCG-PC)
back.jpg)
Highlights
- Full function edge banding work in just one passage.
- Fine trimming, scraping and buffing units with auto tool adjustment leads to fine banding result.
- Panels are evenly pressed by V-belt to maximize stability.
- Large pre-melt tank allows sufficient glue for even fast continuous edge banding, also auto edge tapes changing system can select any one fast from 2 thicknesses of edge tape.
Model NB770
| Panel length |
≥120mm |
| Panel width |
≥80mm |
| Min panel size |
120mm×120mm/200mm×80mm |
| Panel thickness |
9-60mm |
| Edge tape thickness |
0.4-3mm |
| Feeding speed |
18/22/26m/min |
| Total power | 30kw |
| Overall dimension |
9650×1450×1650 |
