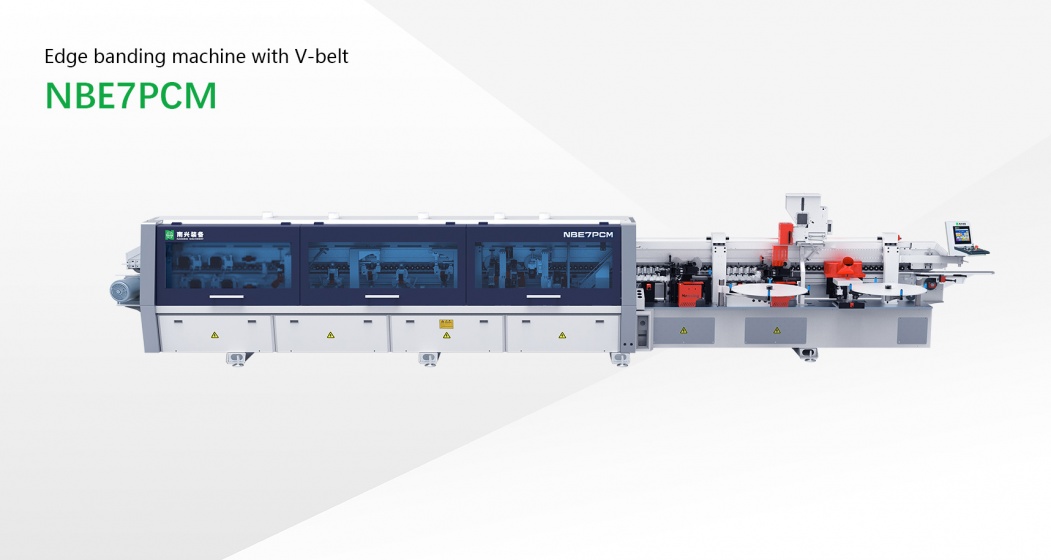

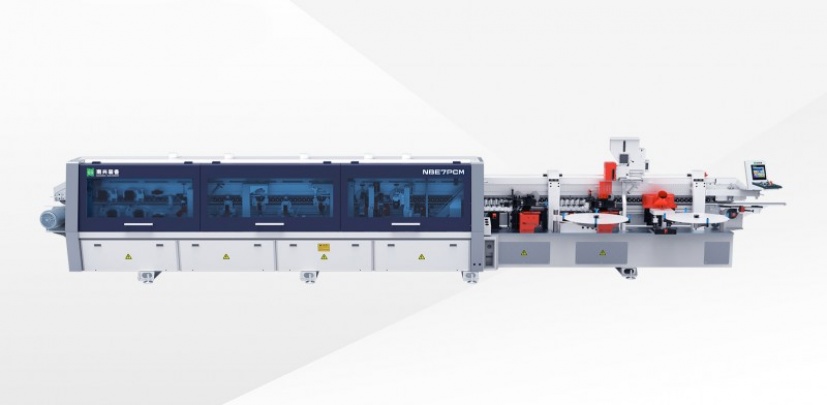

Edge banding machine with V-belt NBE7PCM

back

Model NB7PCGMPC

Panel length	≥120mm（corner trim on≥200mm）
Panel width	≥80 mm
Min panel size	120×80mm（corner trim on）
Panel thickness	9-60mm
Edge tape thickness	0.4-3mm
Feeding speed	16/20/24m/min
Feeding speed(corner trimming on)	22m/min
Dust extraction	φ125mm×7
Total power	37kw
Overall dimension	9800×1450×1650mm
Net weight	3850kg
