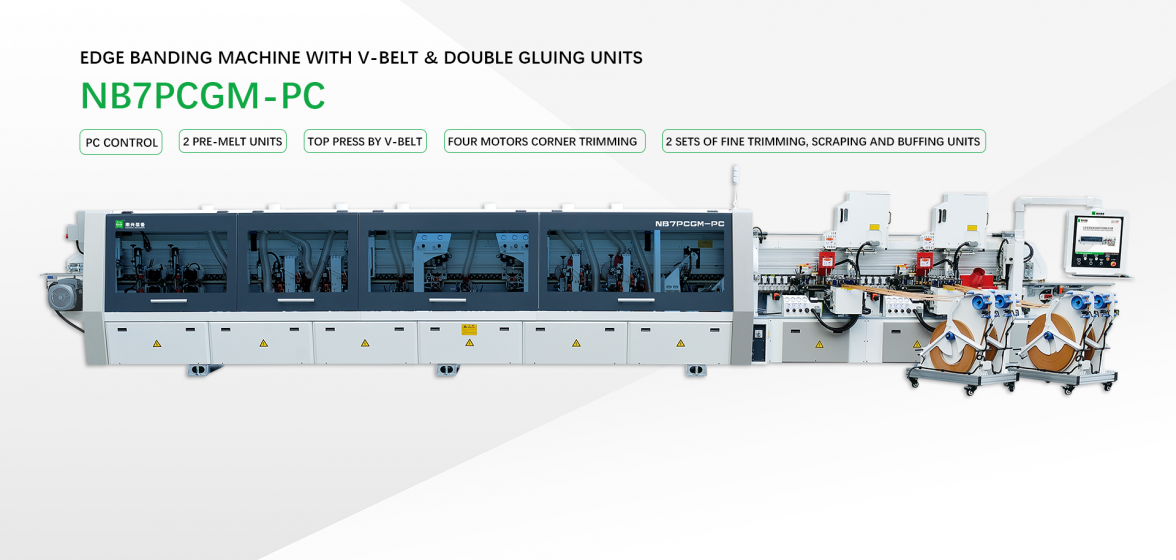

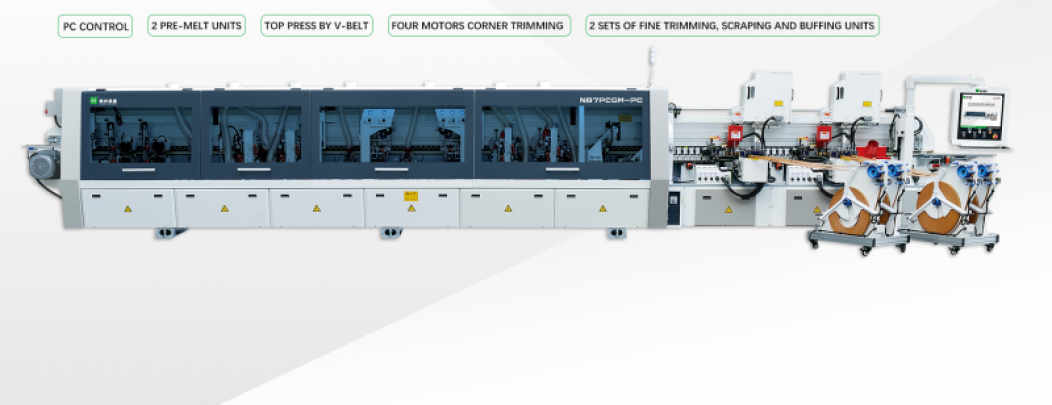

Edge Banding Machine with V-belt & Double Gluing Units NB7PCGM-PC

back

Highlights

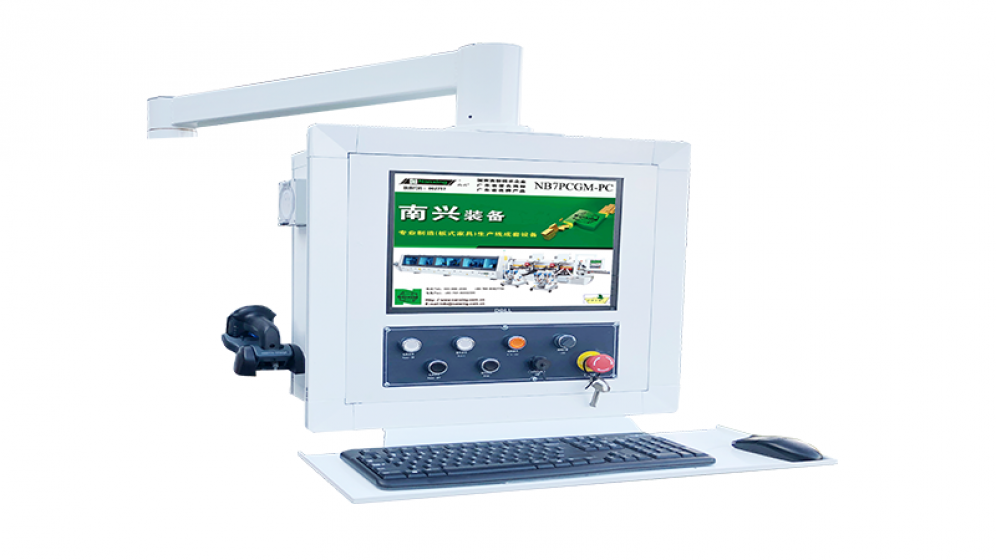

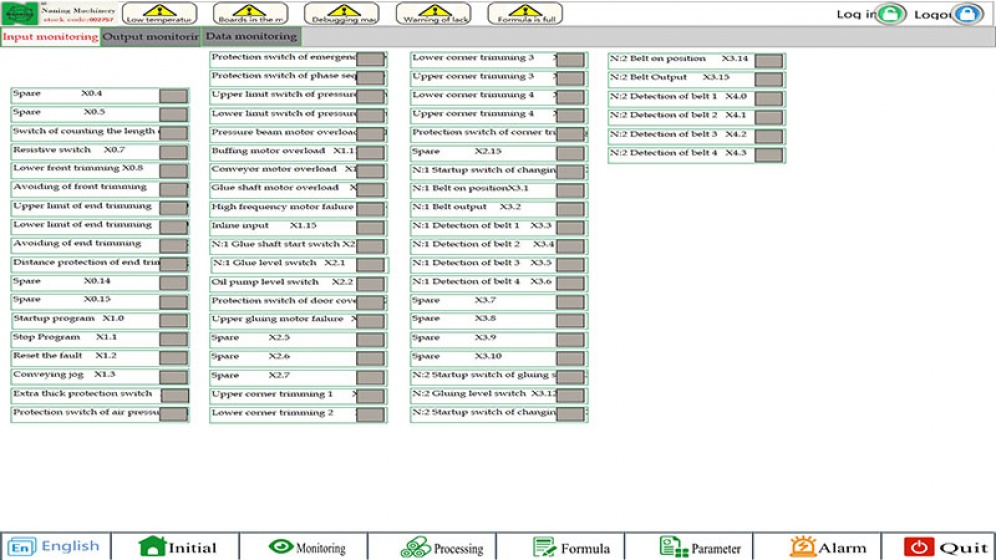

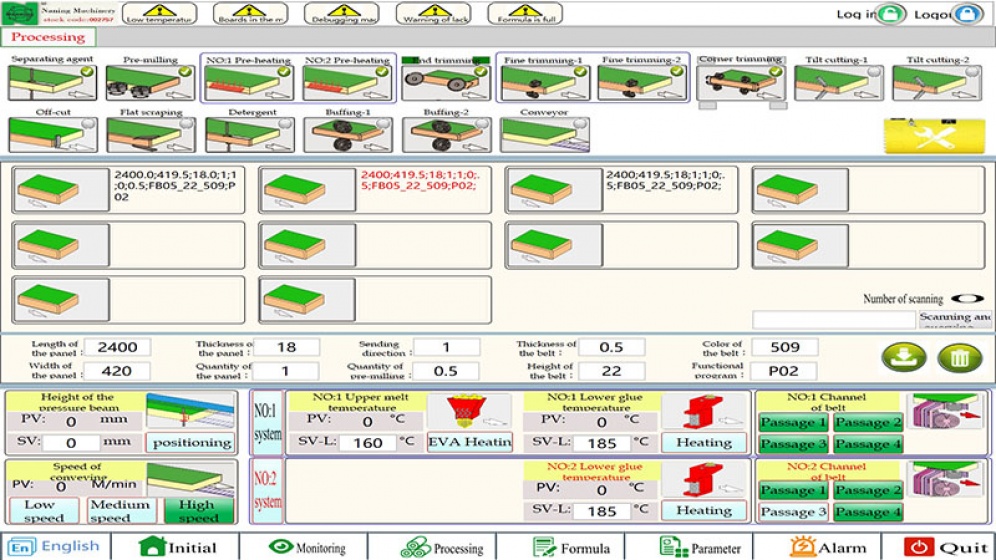

PC control with intelligent and user-friendly software, machine adjustment can be done by just scan QR code by bar code reader, easy and efficient.
With 2 pre-melt gluing units, switching from one of two glue colors fast to match edge tape, optional to choose PUR.

Model NB7PCGM-PC

Panel length	≥120mm（corner trim on≥200mm））
Panel width	≥80 mm
Min panel size	200×80mm（corner trim on）
Panel thickness	9-60mm
Edge tape thickness	0.4-3mm
Feeding speed	18/22/26m/min
Feeding speed(corner trimming on)	22m/min
Dust extraction	φ125mm×8
Total power	42kw
Overall dimension	11200×1050×1850mm
Net weight	6110kg
