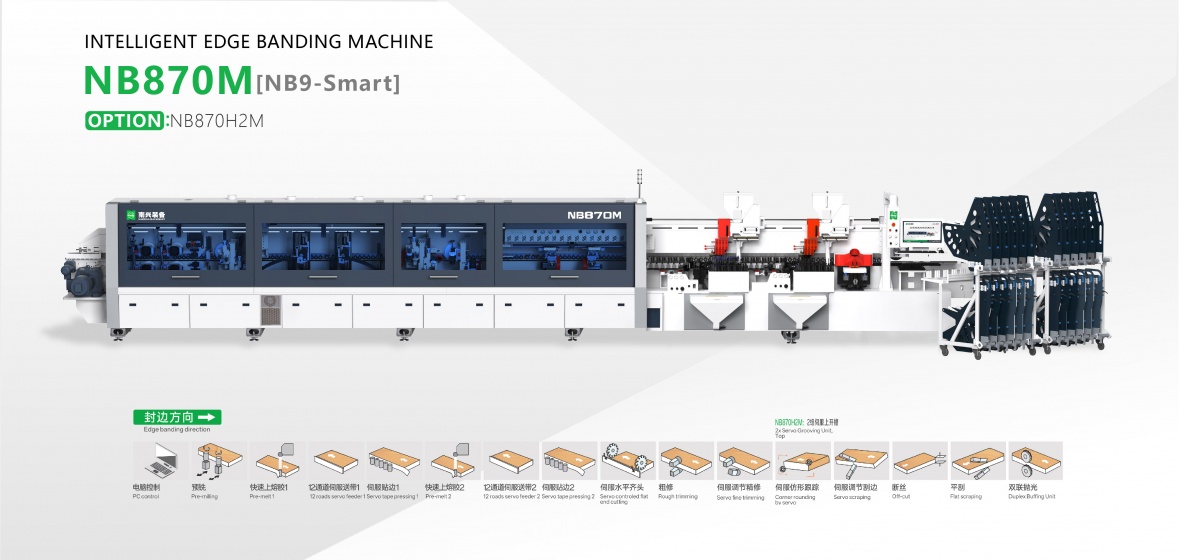

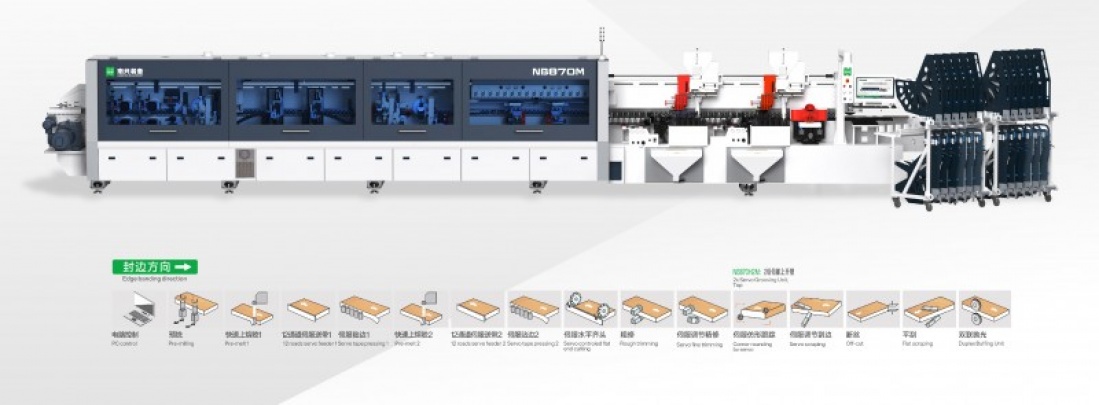

Intelligent Edge Banding Machine NB870M(NB9-Smart)
back.jpg)
Model NB870M
| Panel length |
≥120 mm |
| Panel width |
≥80 mm |
| Min panel size |
120×120mm; 200×80mm |
| Panel thickness |
9-60mm |
| Edge tape thickness |
0.4-3mm |
| Feeding speed |
18/22/26m/min |
| Feeding speed(corner trimming on) |
22m/min |
| Dust extraction | φ125mm×7 |
| Total power | 53kw |
| Overall dimension |
11500×900×1900mm |
| Net weight | 10000KG |
