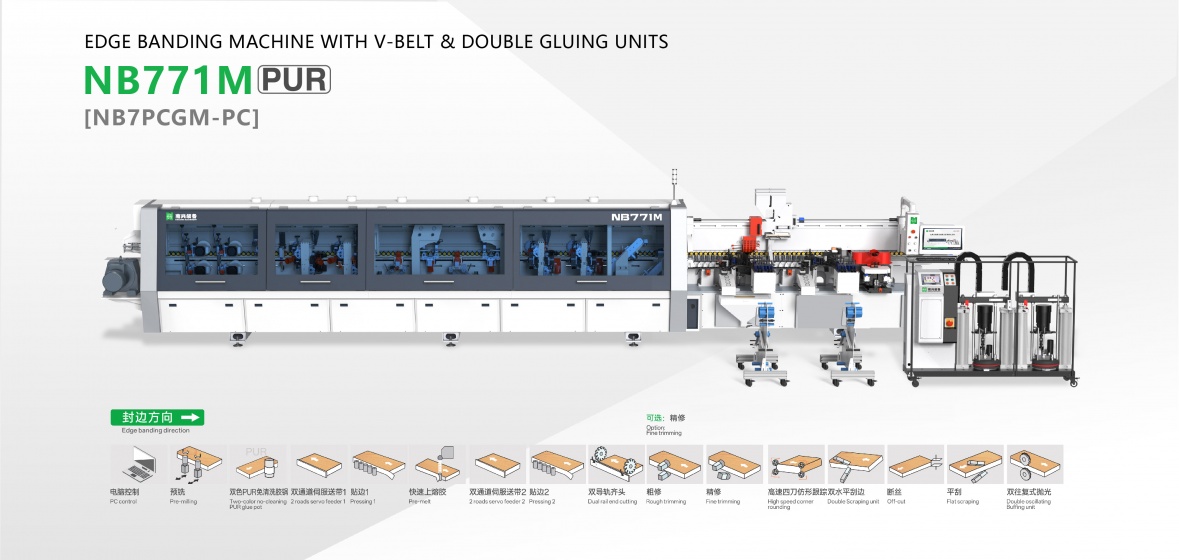

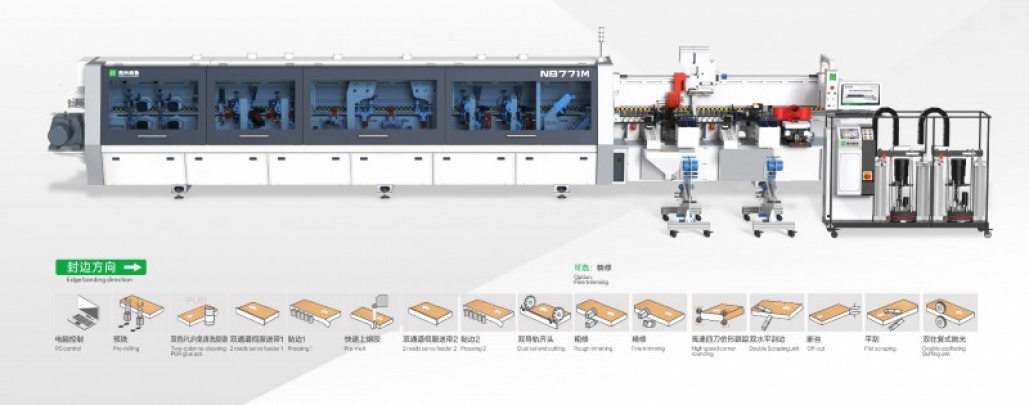

Edge banding machine with V-belt NB771(NB7PCGM-PC)
back.jpg)
Highlights
- Full functional units including PC control, pre-milling, pre-heating, pre-melt, 2 quick melt, 8 tapes changing system, dual rails for end trimming, auto tool adjustment by 2 fine trimming, 4 motors with tools for corner trimming, auto tool adjustment by 2 radius scraping, pneumatic flat scraping, 2 sets of oscillating buffing; Panels are evenly pressed by V-belt to maximize stability;
- With 2 glue units can change colors of glue faster, also auto edge tapes changing system can select any one fast from 4 thicknesses of edge tape;
- PC control.
Model NB771M
| Panel length |
≥120mm |
| Panel width |
≥80mm |
| Min panel size |
200mm×80mm (corner trimming) |
| Panel thickness |
9-60mm |
| Edge tape thickness |
0.4-3mm |
| Feeding speed |
18/22/26m/min |
| Total power | 42kw |
| Overall dimension |
11,200×1,450×1,650mm |
| Net weight | 6,110KG |
