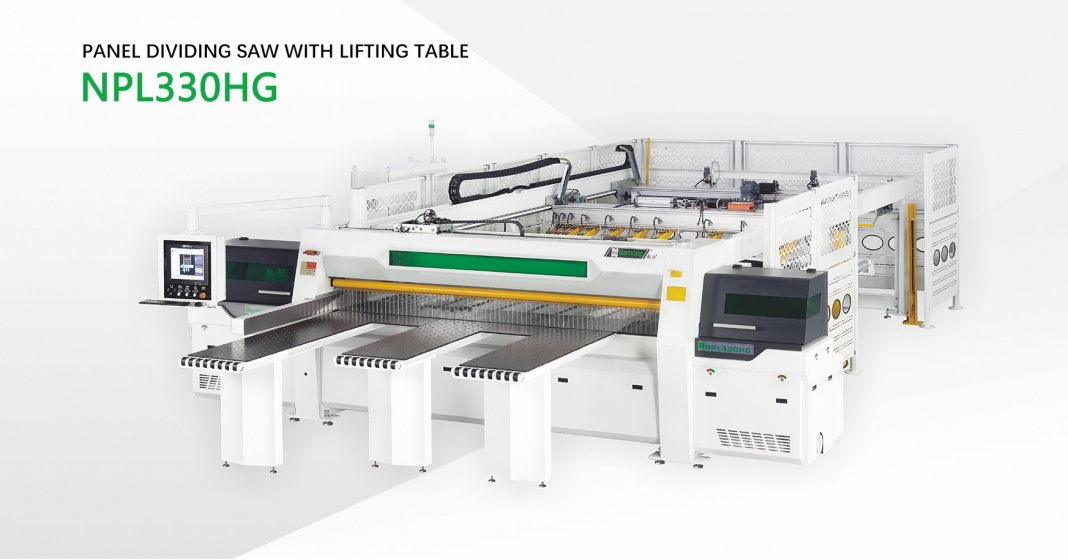

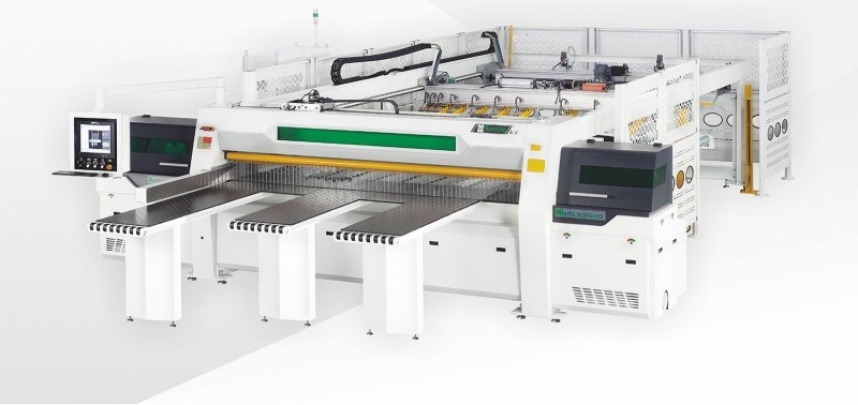

Panel Dividing Saw with Lifting Table NPL330HG

     Highlights

• Alignment automatically by independent side pressing rollers to cut right angle.
• Both main saw and scoring saw with independent movements of up and down, also main saw automatically self-adjusted minimizing the lifting height for efficiency besides making best finish.
• Saw carriage by 2kw servo motor along rack and pinion, automatically moved to fit based on the width of panel, reduces travel distance. Max forward speed up to 90m/min, backward speed up to 120m/min.
• Hydraulic rear feeding lift table with max 5t loading capacity, combined with powered and non-powered conveyors making it convenient to feed panels from left, or right side (feeding from left, right, and back side to be specified and optional).
• Powerful software so easy to use, including managing the work process with detailed reports, simulating cutting patterns, showing any error message, printing bar code and many more advantages, also user friendly HMI, making whole machine much reliable.
