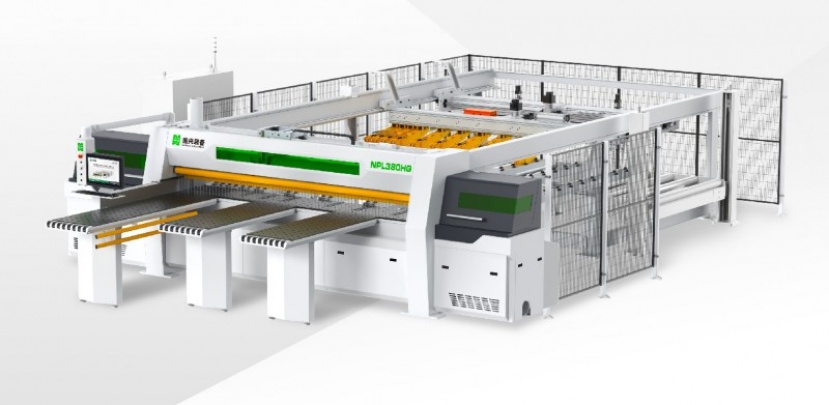

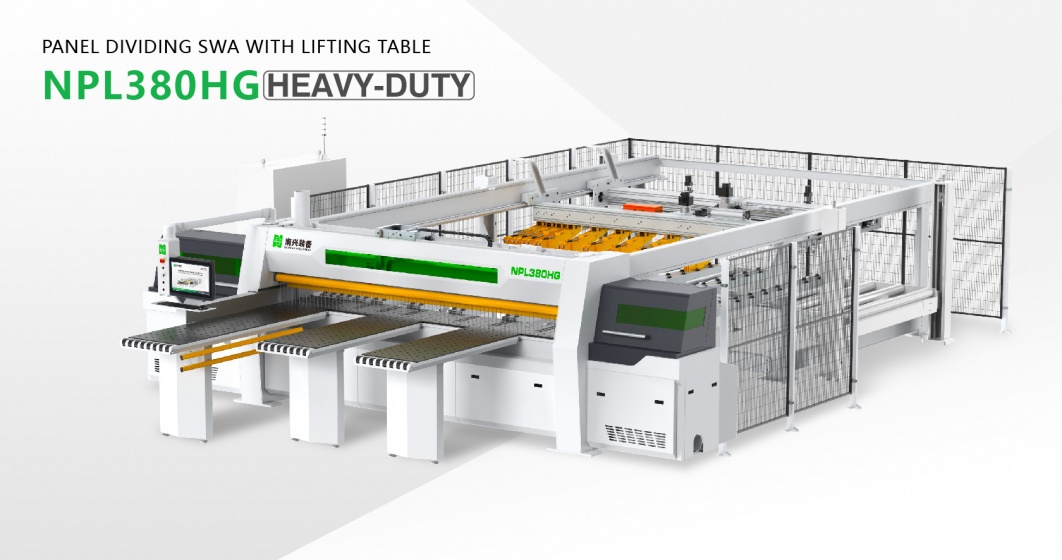

Panel Dividing Saw with Lifting Table NPL380HG

back

Highlights

Hydraulic rear feeding lift table with max 5t loading capacity, combined with powered and non-powered conveyors making it convenient to feed panels from left, or right side (feeding from left, right, and back side to be specified and optional).

Model NPL380HG

Cutting	Max. cutting length 3,800mm Max.cutting thickness 120mm
Main saw	Motor power 18kw Rotating speed 3,910rpm/min Saw blade diameter 450mm Saw blade shaft diameter 60mm
Scoring saw	Motor power 2.2kw Rotating speed 4,150rpm/min Diameter 180mm Diameter of axle 45mm
Saw carriage	Motor power 1.5kw Forward speed 90m/min Backward speed 120m/min
Automatic feeding motor power	2kw(AC servo)
Power supply	AC3P380V/50Hz
Total power	40kw
Overall size	9400×9200×2020mm
Net weight	12,300kg
