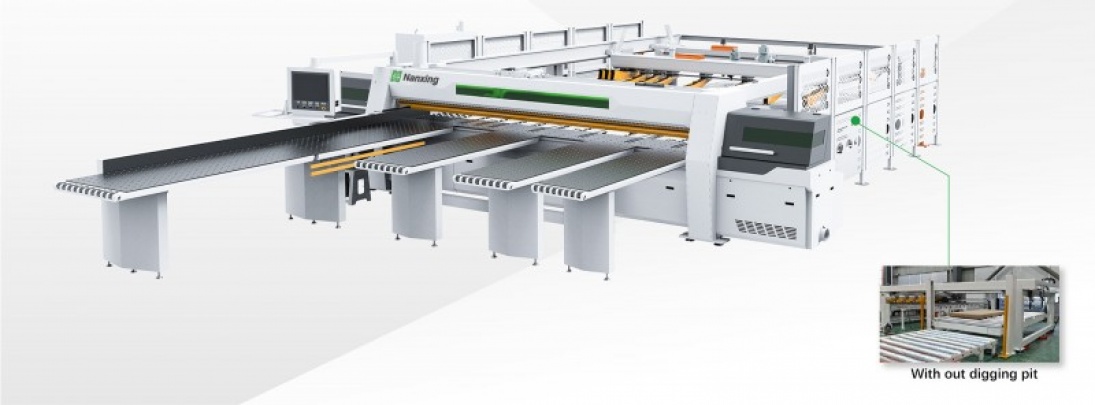

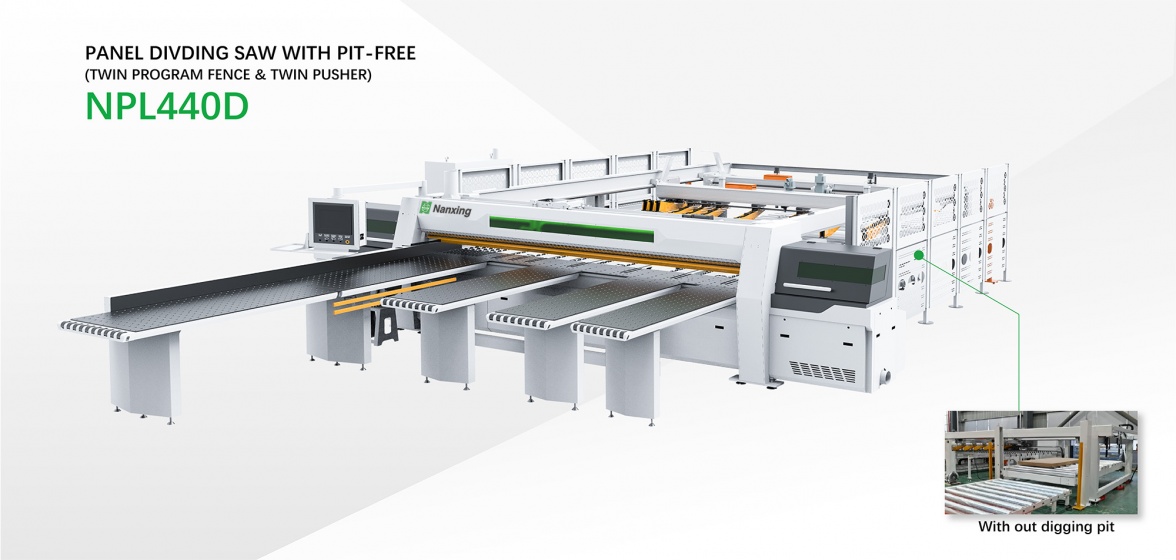

Panel Dividing Saw with PIT-FREE(Twin program fence &twin pusher) NPL440D

back

Independently working 2 sets of clamps of different functions built within machine, clamp device and pusher bar setting independently, cutting boards synchronously in different sizes either both boards by crosswise cut or combined differently with crosswise and lengthwise cut, increasing cutting capacity by 30%.
Both main saw and scoring saw with independent movements of up and down, also main saw automatically self-adjusted minimizing the lifting height for efficiency besides making best finish.
Quick exchange of main saw blade, ideal design for operator.
Pressure beam automatically self-adjusted according to the total height of panels, to shorten the travel range, hence higher efficiency.
Hydraulic rear feeding lift table with max 5t loading capacity, combined with powered and non-powered conveyors making it convenient to feed panels from left, or right side (feeding from left, right, and back side to be specified and optional).
With steel rope lift system without digging pit.

Cutting	Max. cutting length 4,400mm Max.cutting thickness 120mm
Main saw	Motor power 18.5kw Rotating speed 3,910rpm/min Saw blade diameter 450mm Saw blade shaft diameter 60mm
Scoring saw	Motor power 2.2kw Rotating speed 4,150rpm/min Diameter 180mm Diameter of axle 45mm
Saw carriage	Motor power 1.5kw Forward speed 120m/min Backward speed 120m/min
Saw carriage	Automatic feeding motor 1.5kw Main grippers:85m/min Scoring grippers:55m/min
Gripper qty	(2+11)13 pcs
Automatic feeding motor power	2kw(AC servo)
Power supply	AC3P380V/50Hz
Total power	41kw
Overall size	10300x9600x2020(left back feed) 10300 X 9600 X2020mm (right back feed)
Net weight	11,400kg
