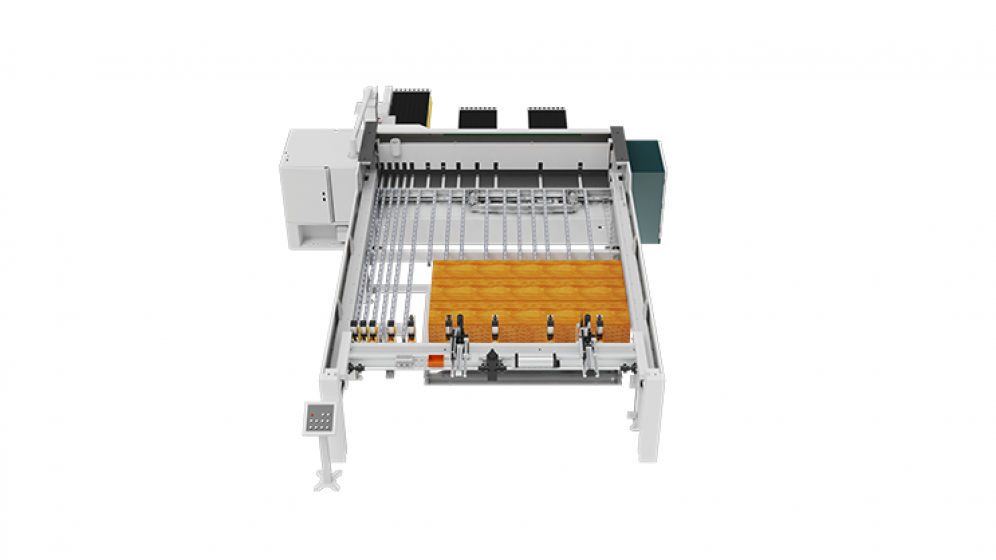

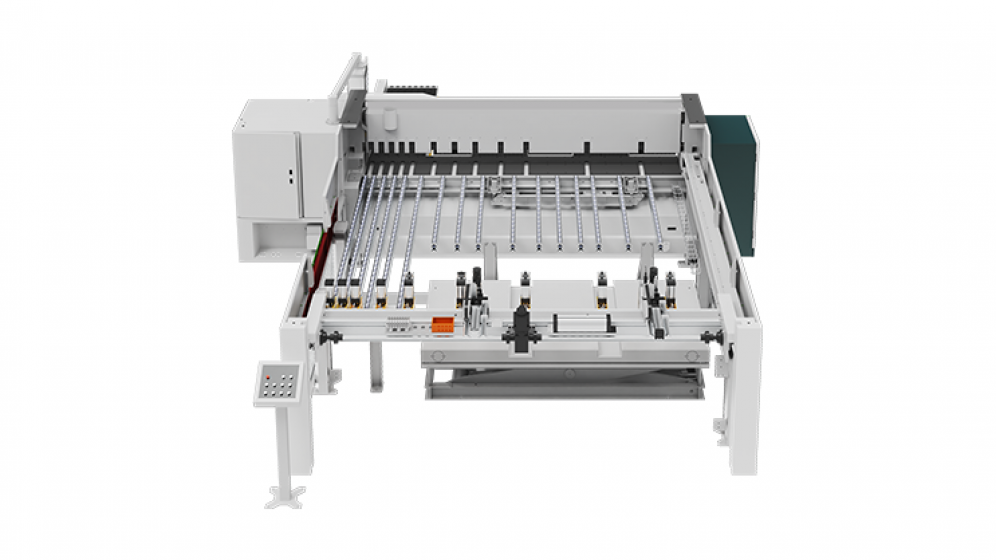

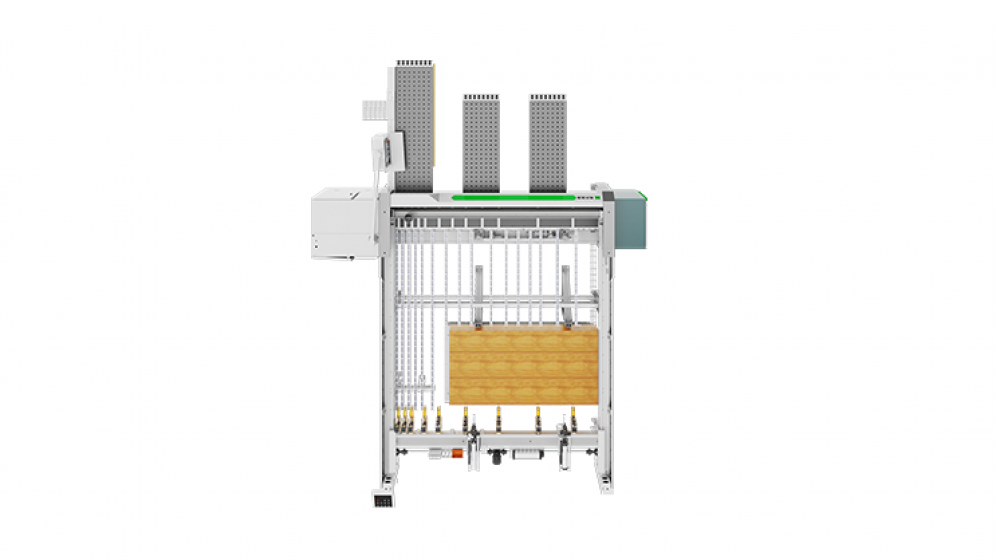

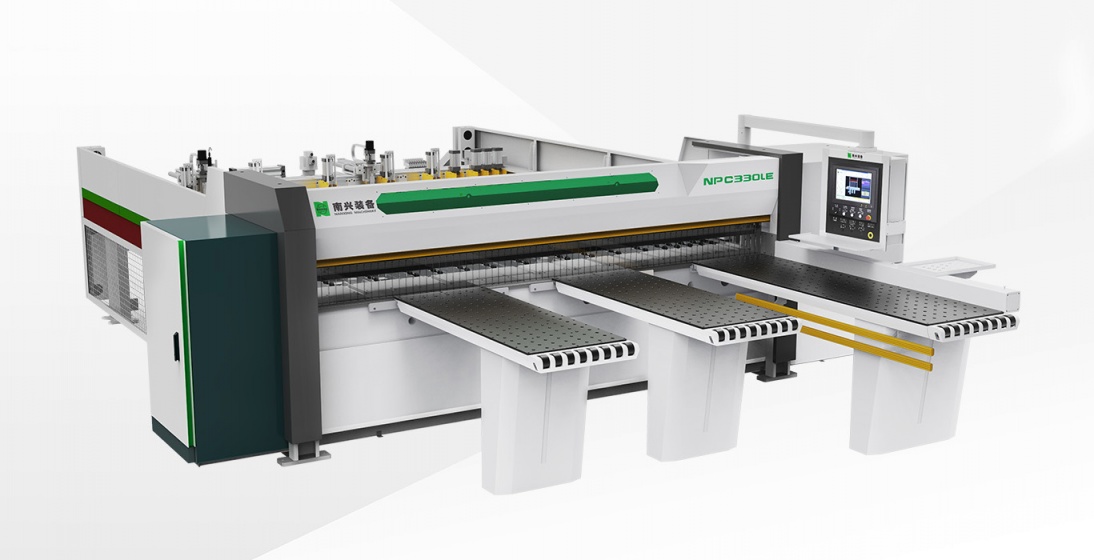

Rear Feed Panel Dividing Saw NPC330LE

back

    Highlights

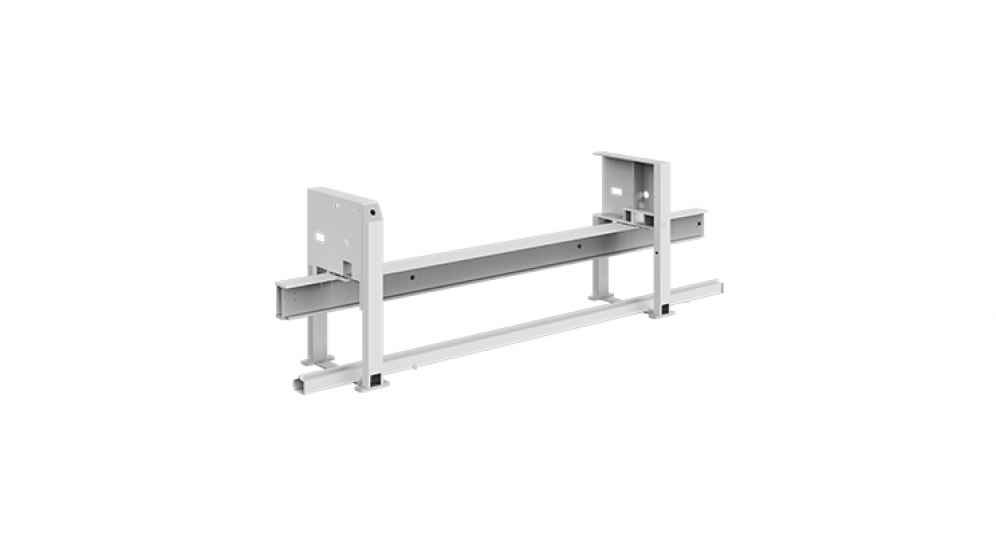

  • Bridge type frame made of special steel

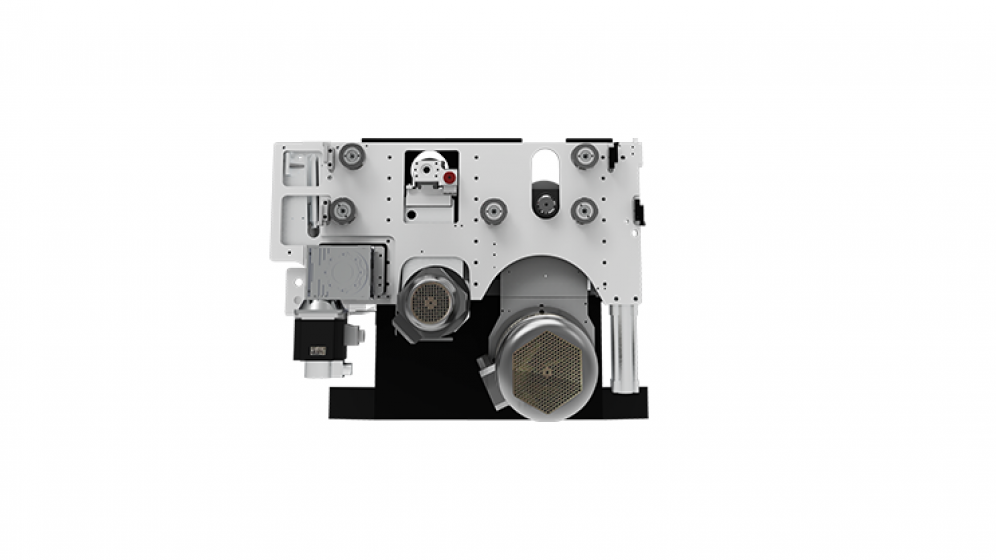

  • The saw car is driven by a servo motor and a rack and pinion drive, which runs smoothly

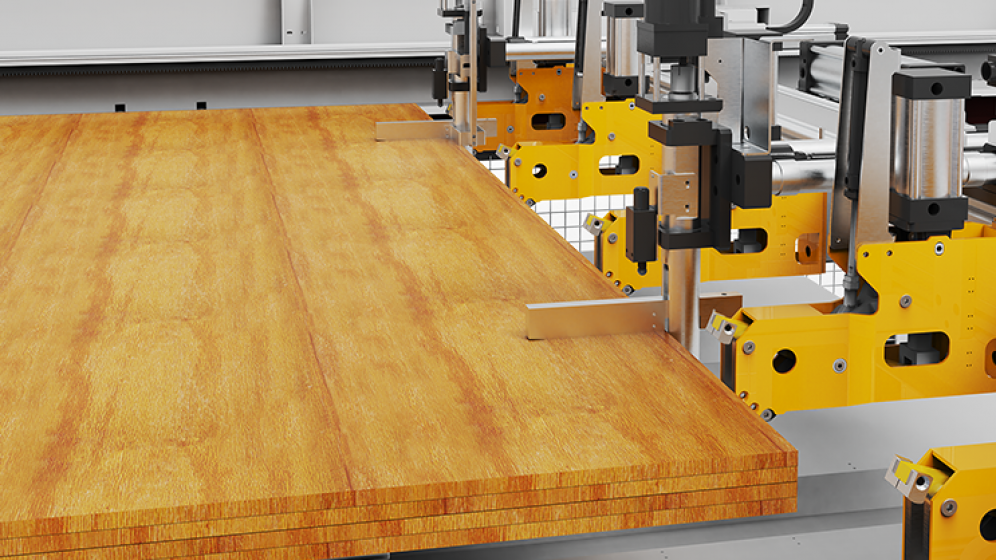

  • Equipped with 9 clamps, large cross-section formed aluminum material, precise positioning for grabbing and pushing materials
  • Post-feeding lifting table feeding, saving labor and time
  • Equipped with side lean device, narrow and long board positioning is more accurate

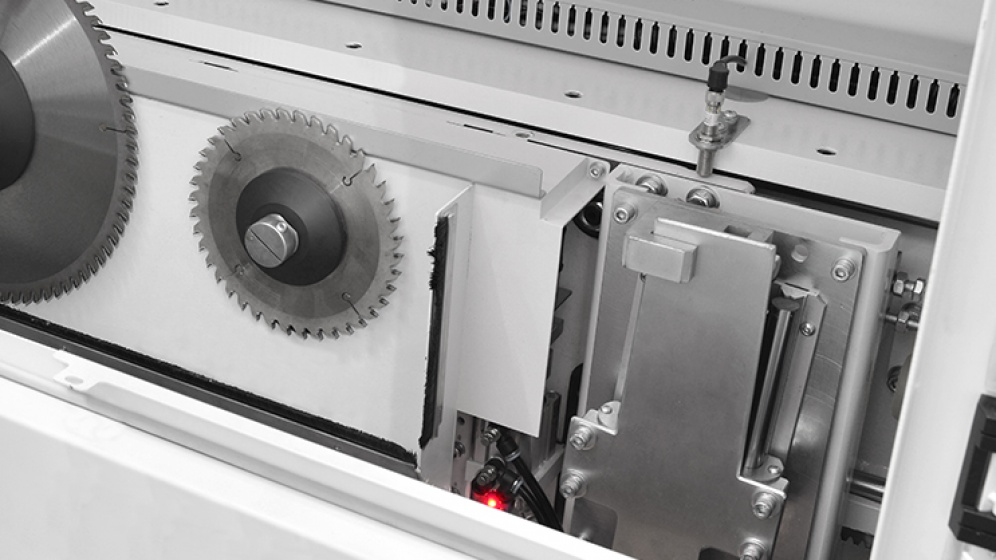

  • Automatic positioning of saw blade and pressure beam can realize automatic positioning stroke according to the thickness of the workpiece

Model NPC330LE

Cutting length 3200mm
Cutting thickness 90mm
Main sawrotating speed

3910rpm

Scoring saw rotating speed

4300rpm

Saw carriage forward speed

90 m/min

Saw carriage backward speed

120 m/min

Main saw motor

15kw

Auto feeding speed

85 m/min

Rear feeding speed

60 m/min

Dust extraction φ150mm×3
Total power 26kw
Overall size

7500×5400×1810mm

Net weight 6500kg
