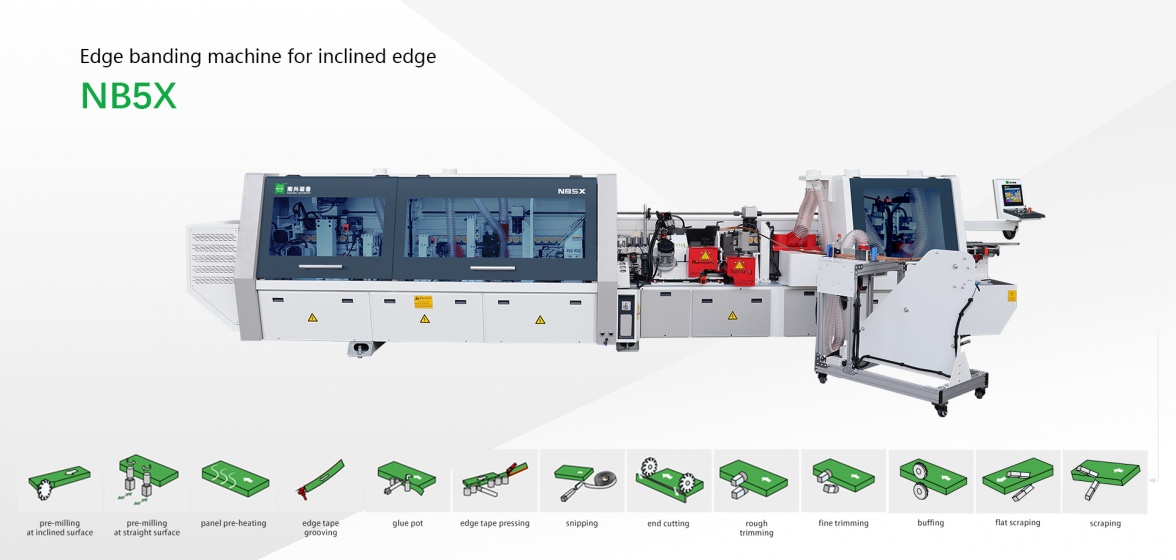

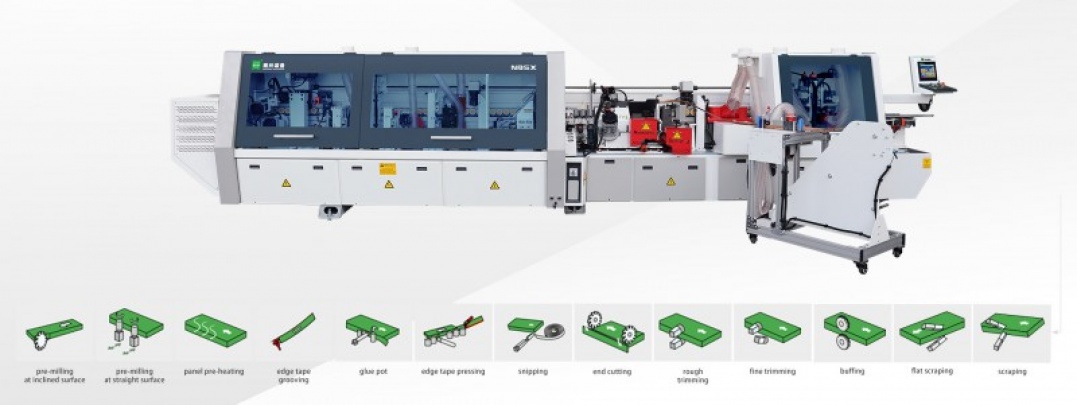

Edge Banding Machine for Inclined Edge NB5X

back

     Highlights

  • With the NB5X you can create on trend cabinets with a "finger pull’ profile design. This eliminates theneed for additional hardware such as handles. Create angled or inclined edging with twindiamond cutters and twin glue station.

Model NB5X

Workpiece length

≥150

Workpiece width

  ≥120

Min workpiece size

150×120mm

Workpiece thickness

9-25mm

Edge tape thickness

0.6-2mm

Feeding speed

12m/min(inclined)14m/min(straight)

Bevel angle

45°

Dust extraction φ125mm×9
Total power 33kw
Overall dimension

7700×1050×1650mm

Net weight 3000KG
