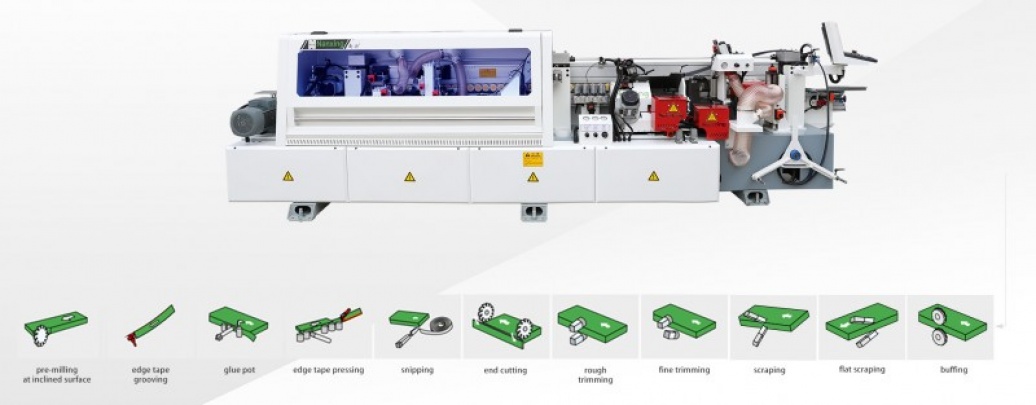

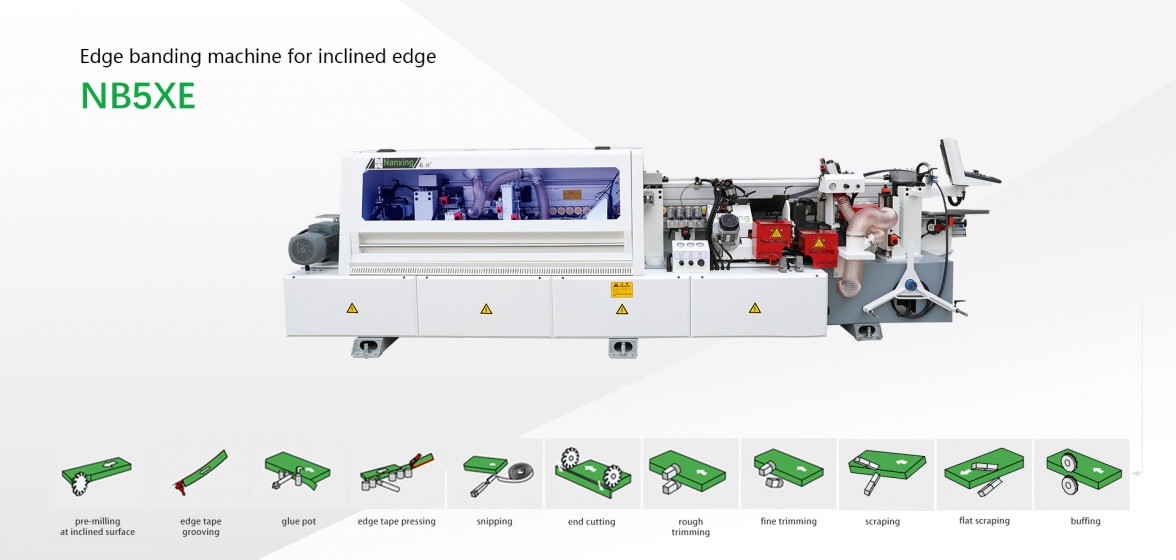

Edge Banding Machine for Inclined Edge NB5XE
back.jpg)
Highlights
Model NB5XE
| Workpiece length |
≥150 |
| Workpiece width |
≥120 |
| Min panel size |
150×120mm |
| Panel thickness |
9-60mm(Straight side) 18-25mm(Soft forming) |
| Edge tape thickness |
0.4-0.6 mm (Soft forming) 0.6-2 mm (Straight side, straight and inclined) |
| Feeding speed |
12/14/16m/min |
| Power supply |
380 V; 50 Hz |
| Dust extraction | φ125mm×9 |
| Total power | 42kw |
| Overall dimension |
11600×1050×1900 |
| Net weight | 4800KG |
