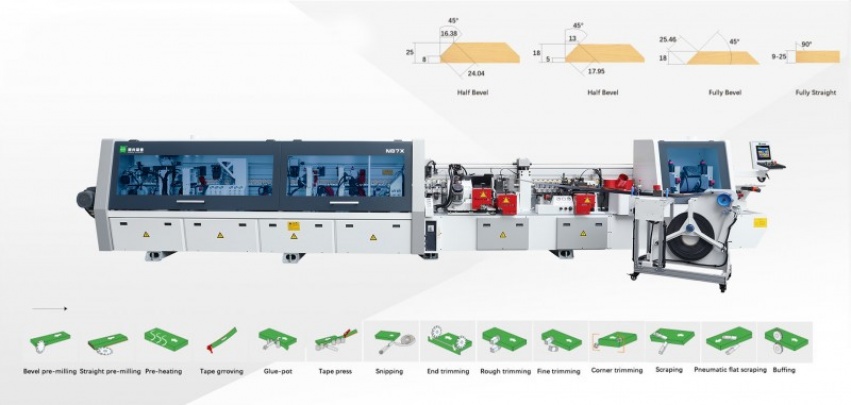

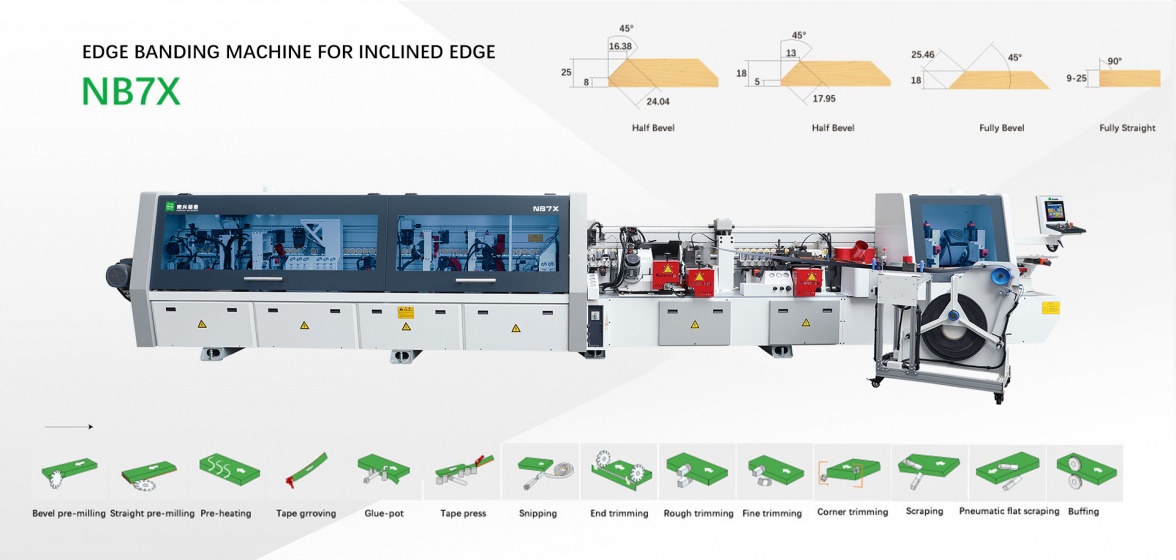

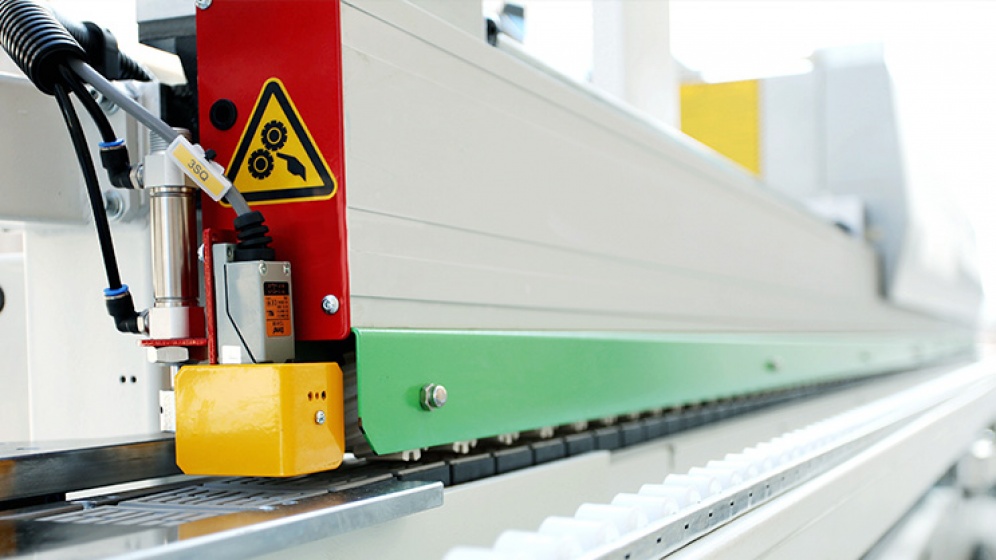

Edge Banding Machine for Inclined Edge NB7X

    Highlights

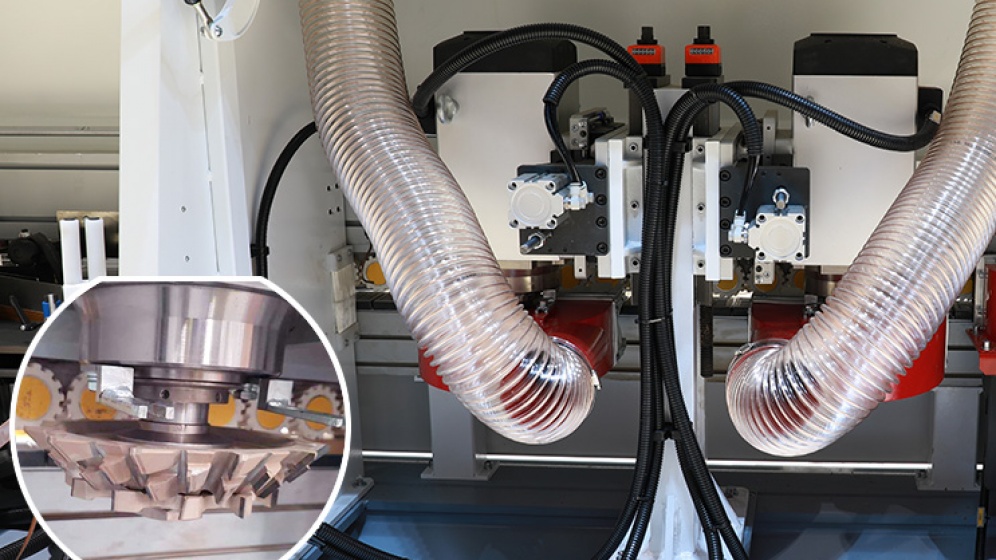

• 45 degrees diamond forming bevel cutters controlled by two 4kw high-power motors, high rotating speed 2800rpm of low vibration and low noise, this combination of strong cutters and powerful motors ensures perfect milling effect without cracks.
• Two edge tape changing system makes it possible to switch between straight edge and bevel edge just by one button without any extra set up work.

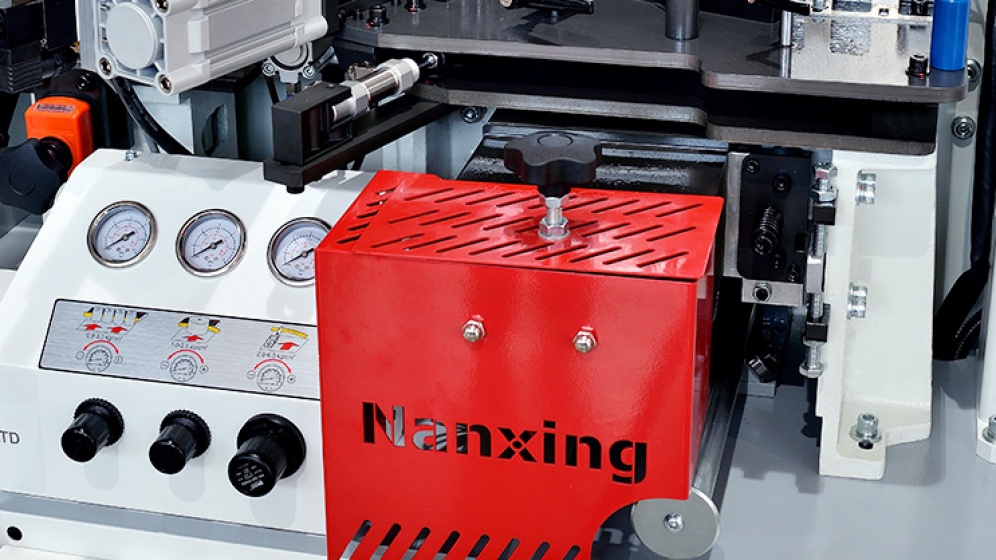

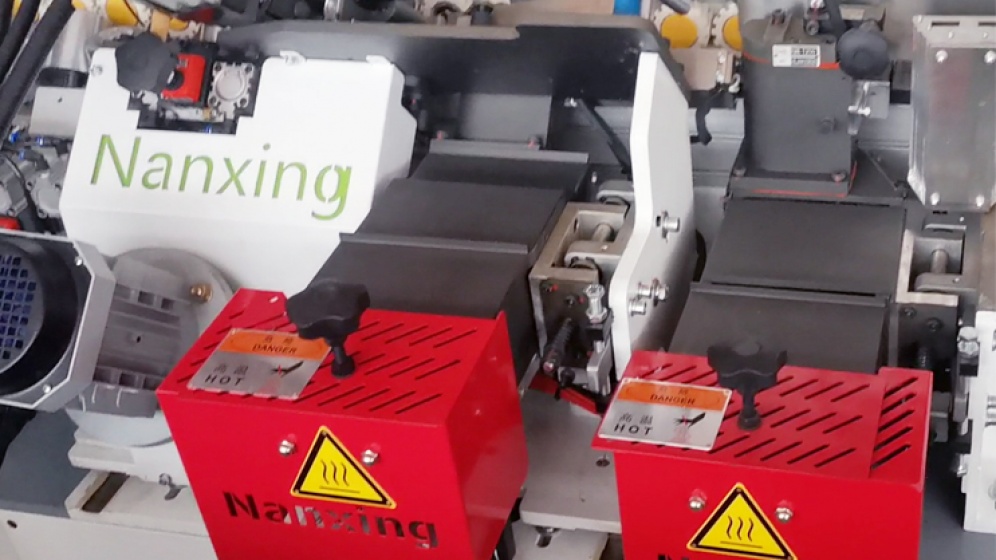

• One separate gluing unit for fully straight edge gluing and the other set of gluing unit with two glue pots for half bevel and fully bevel edge gluing, better performance and fast switch between straight and bevel .
• Fast move back structure, move a little bit backward while doing bevel edge, move forward while doing straight edge so as to achieve fast switch between bevel edge and straight edge banding work but without possible collision or damage on edge tape.

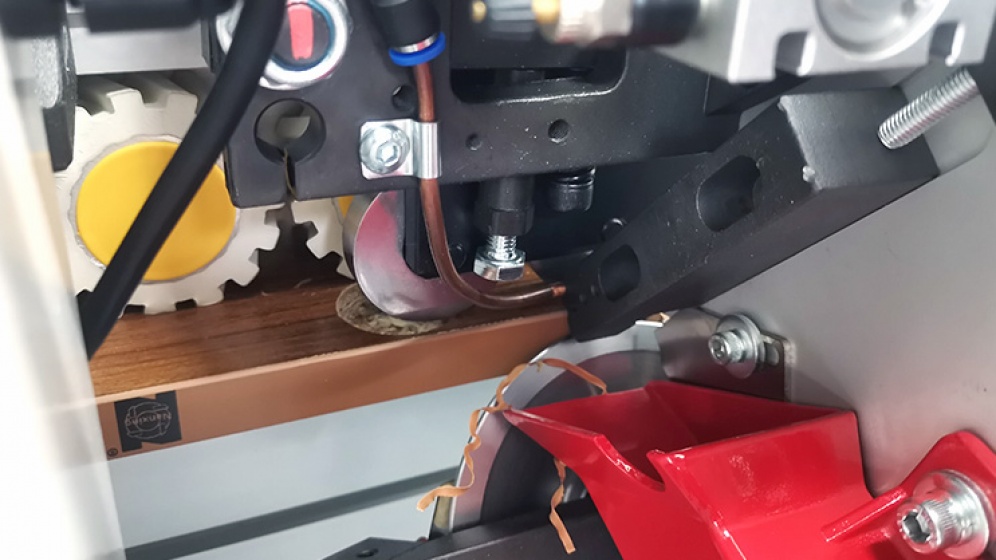

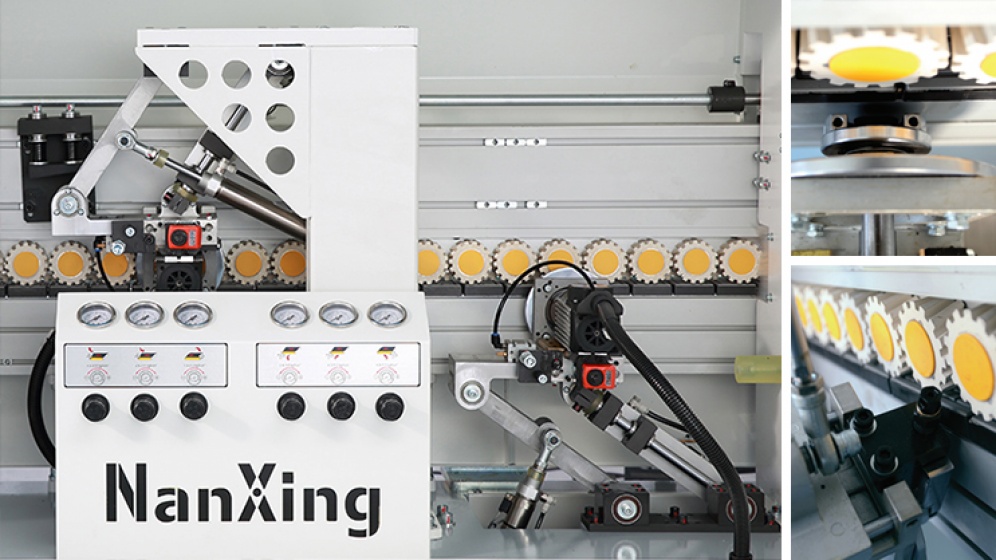

• Pre-nesting tracing structure on trimming units makes it possible to do edge banding on workpieces with highe hole.
