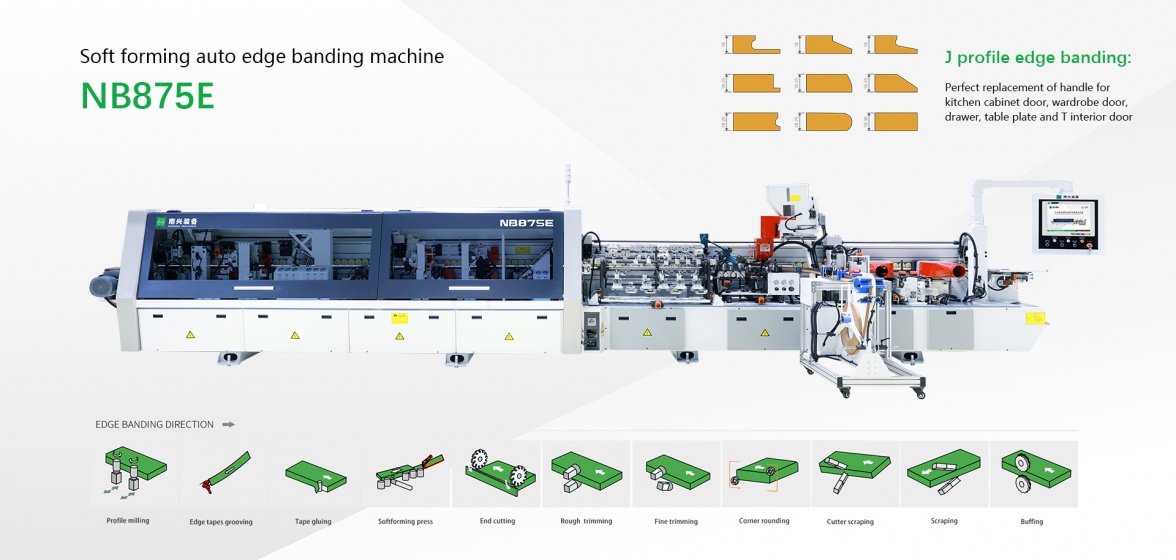

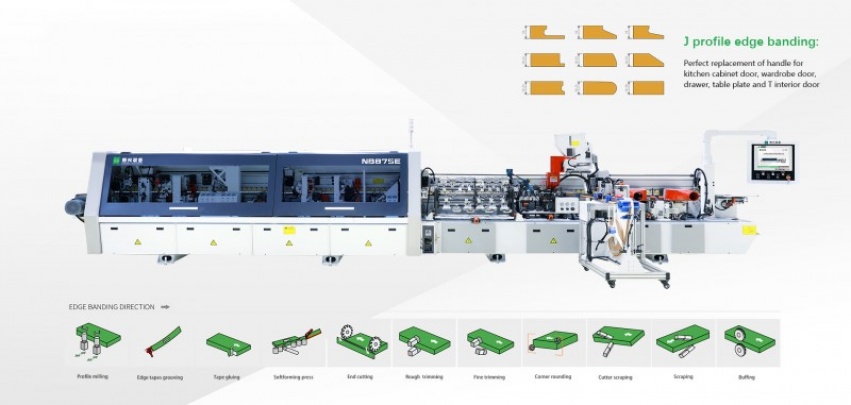

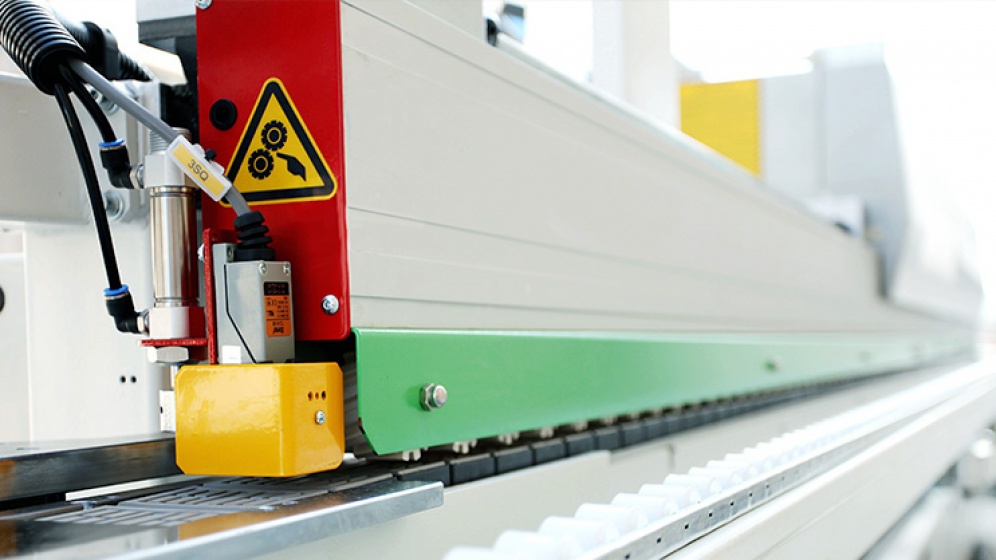

Edge Banding Machine for Soft Forming NB875E

back

Highlights

Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
Selectable different profiles by adjusting tool and edge pressing. Tool height adjust just by one button, Fast and convenient.
Automatically switch among profile edge, straight edge and bevel edge.
PC control
Most electric components are in world famous brand.

Model NB875E

Panel length	≥120mm(straight edge) ≥350mm(soft forming)
Panel width	≥120
Min panel size	≥280×120mm(straight edge) ≥350×120mm(soft forming)
Panel thickness	≥9-60mm(straight edge) ≥18-25mm (soft forming)
Edge tape thickness	0.4-2mm
Feeding speed	12-20m/min(straight edge) 12-14m/min(soft forming)
Bevel angle	0-60°(soft forming)
Dust extraction	φ125mm×7
Total power	35kw
Overall dimension	9950×1940×1780mm
Net weight	5000kg
Min size of inclined right-angled sides	3-20mm(soft forming)
