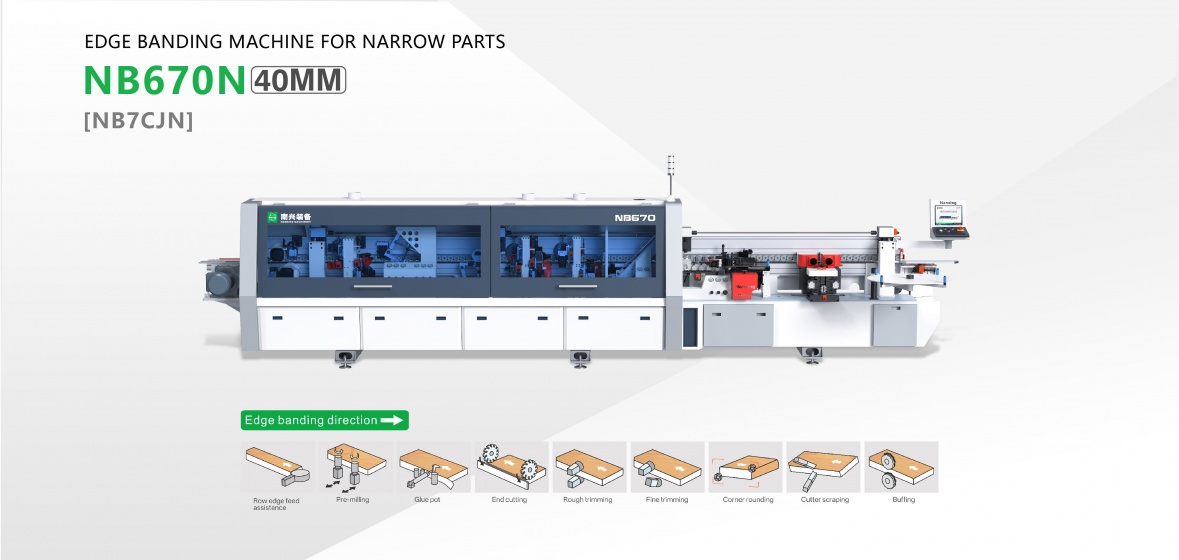

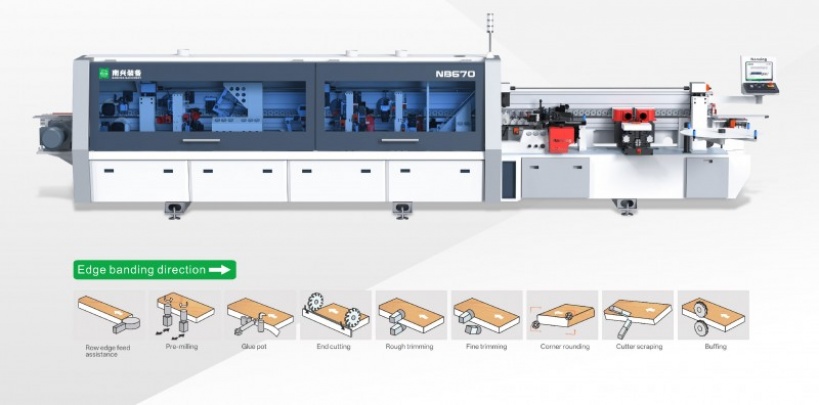

Edge Banding Machine For Narrow Edge NB670N(NB7CJN)

back

Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
Compact press rollers cooperate with additional assistance rollers on front and in between make it possible to do narrow edge banding work；
Automatic standby, one-button wake-up device and energy saving;
Most electric components are in world famous brand;
Customer Reference: 30+ countries; 2000+ machines.

Model NB670N

Panel length	≥120mm
Panel width	≥40mm
Min panel size	120x120mm(4 sides) 200x40mm (long edge) 40x200 (short edge)
Panel thickness	≤25mm(Narrow edge & Corner rounding on) 9-60mm
Edge tape thickness	0.4-3mm
Feeding speed	16/20/24m/min
Total power	24kw (with upper gluing unit 27,7kw)
Overall dimension	7700×1050×1650mm 7700×1050×1850mm(with upper gluing unit)
Net weight	3,670KG
