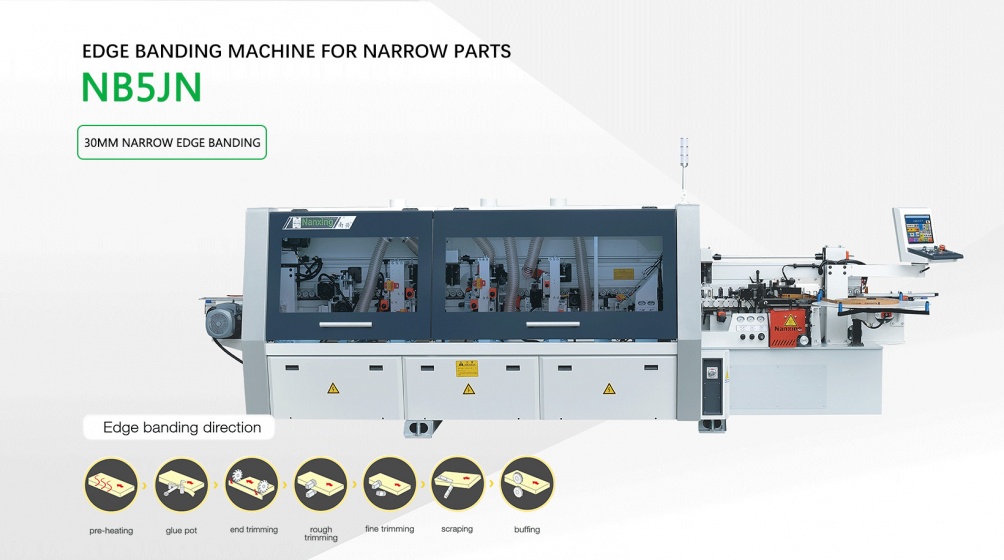

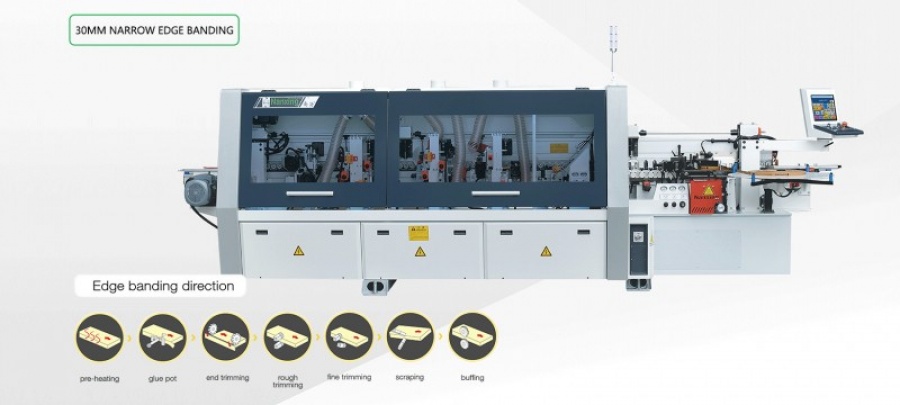

Edge Banding Machine for Narrow Parts NB5JN

back

    Highlights

  • Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
  • Compact press rollers cooperate with additional assistance rollers on front and in between make it possible to do edge banding work for min 30mm work piece in width.
  • Most electric components are in world famous brand.

Model

Panel length

≥120mm

Panel width

≥30mm

Min panel size

300×30mm(long edge)

Panel thickness

9-60mm

Edge tape thickness

0.4-3mm

Feeding speed

16/18/20m/min

Total power

14.4kw

Overall dimension

5500×1450×1650mm

Net weight 2250kg
