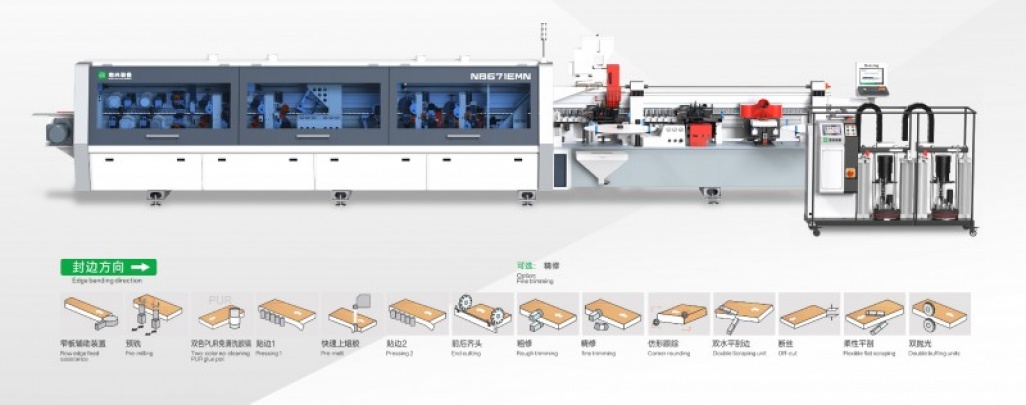

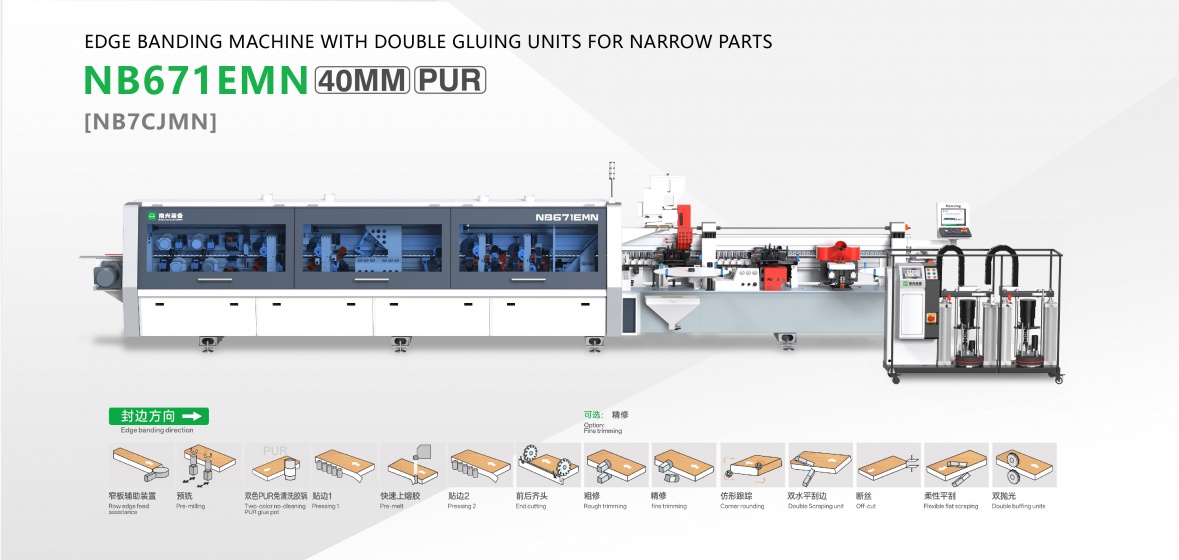

Edge Banding Machine with Double Gluing Units for Narrow Edge NB671EMN(NB7CJMN)

back

Compact press rollers cooperate with additional assistance rollers on front and in between make it possible to do narrow edge banding work.
Two sets of gluing, 2 sets fine trimming, 2 sets scraping and 2 sets buffing make it easy and fast to switch between dark and light color glue and 2 tape thickness which meet flexible edge banding requirements.
Cutters of one set of fine trimming, scraping are able to move backwards automatically if changing to the other color glue, set-up time tends to zero. Low investment, big benefits.

Model NB671EMN

Panel length	≥120mm
Panel width	≥40mm
Min panel size	120x120mm(4 sides) 200x40mm (long edge) 40x200 (short edge)
Panel thickness	≤25mm
Edge tape thickness	0.4-3mm
Feeding speed	16/20/24m/min
Total power	33.7kw
Overall dimension	9400×1050×1850mm
Net weight	3470KG
