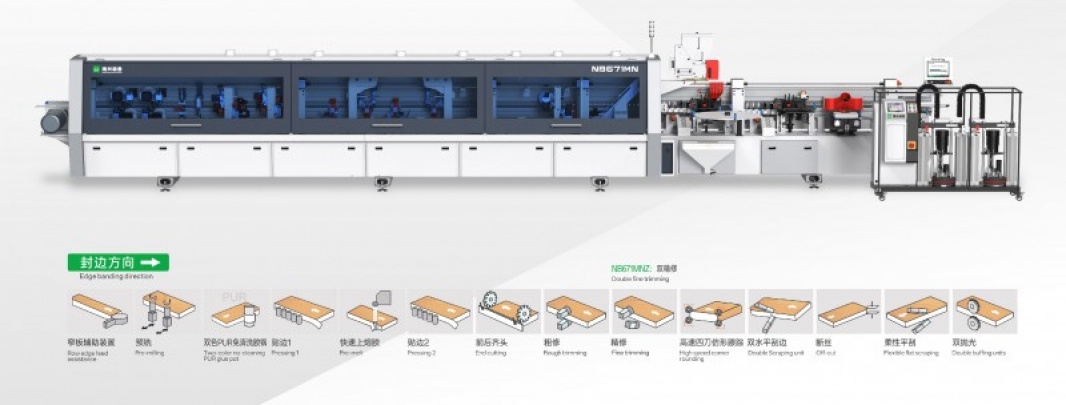

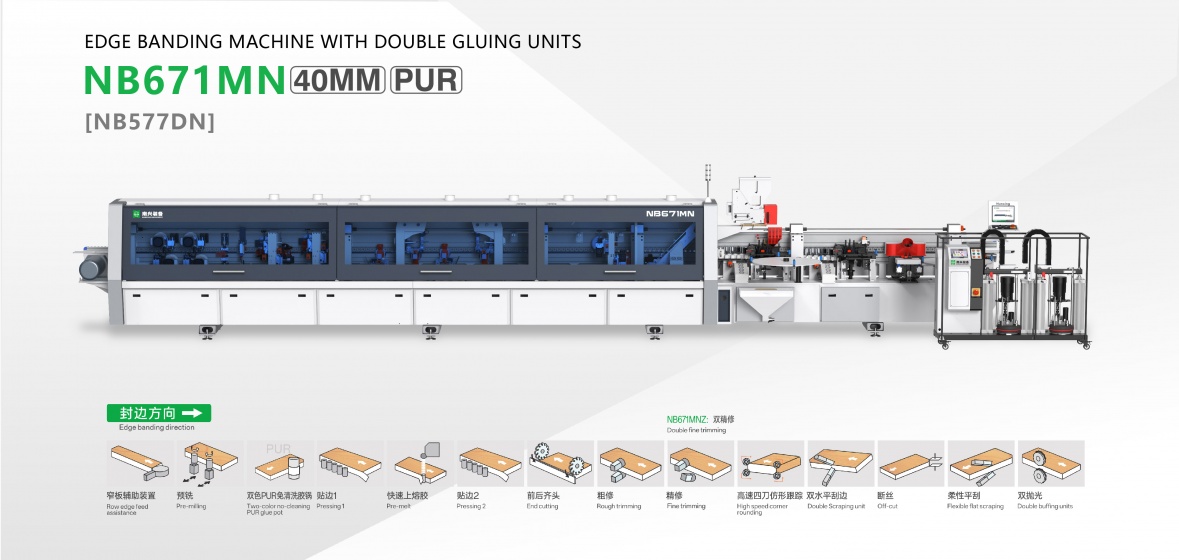

Edge Banding Machine with Double Gluing Units for Narrow Edge NB671MN(NB577DN)

back

Compact press rollers cooperate with additional assistance rollers on front and in between make it possible to do edge banding work for min 40*200mm long&short side.
Speed 18/22/26m/min Two sets of gluing, fine trimming, scraping and buffing units make it easy and fast to switch between dark and light color glue which meet flexible edge banding requirements.
Cutters of one set of fine trimming, scraping are able to move backwards automatically if changing to the other color glue, set-up time tends to zero.
Low investment, big benefits.

Model NB671MN

Panel length	≥120mm (≥200mm with corner rounding)
Panel width	≥40mm
Min panel size	120x120mm(4 sides) 200x40mm (long/short edge)
Panel thickness	≤25mm(Narrow edge & Corner rounding on) 9-60mm
Edge tape thickness	0.4-3mm
Feeding speed	16/22/26m/min
Total power	36.8kw
Overall dimension	11200×1050×1850mm
Net weight	4250KG
